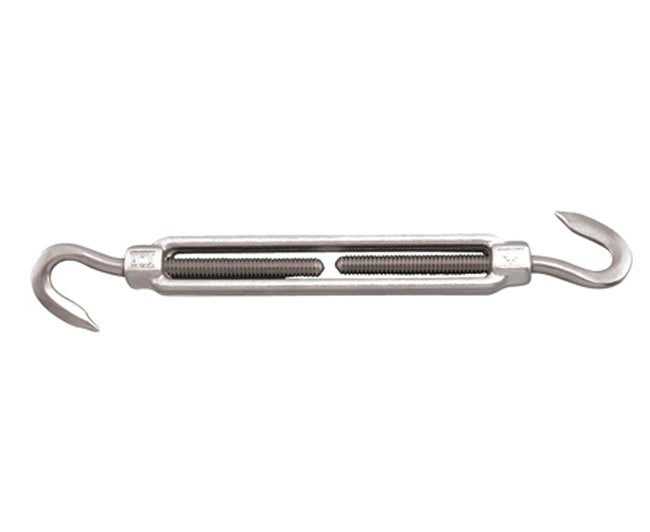

316 Stainless Steel Forged Hook and Hook Turnbuckle

Name: 316 Stainless Steel Forged Hook and Hook Turnbuckle
Brand: Suncor Stainless, Inc.
SKU: STA-bed63f
Price: 29.99 USD
Availability: OutOfStock

SKU:STA-bed63f

Premium 316 Stainless Steel Turnbuckle for marine and industrial applications, with 500 lb WLL. Meets ASTM F1145-05 (2011) standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 316 Stainless Steel Forged Hook and Hook Turnbuckle boasts an open body design, perfect for marine and industrial use. Crafted from grade 316-NM stainless steel, it offers superior corrosion resistance and durability. With a Working Load Limit (WLL) of 500 lb, this turnbuckle meets ASTM F1145-05 (2011) Type 1, Class D standards. Suncor exclusive, drop forged for precision. Available in sizes from 1/4" to 3/4".

Product Specifications

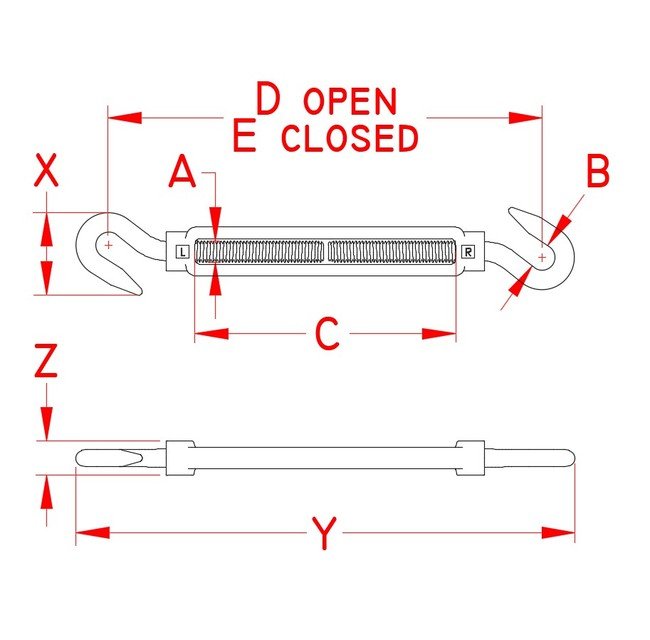

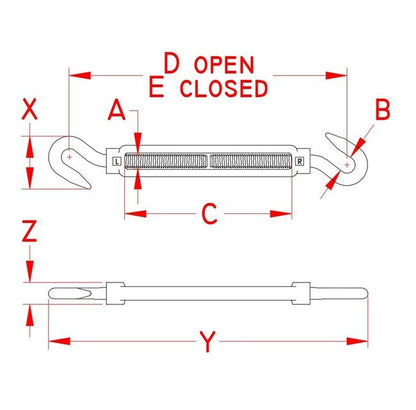

Specifications Dimension A

5/16 in

Specifications Dimension B

0.44 in

Specifications Dimension C

4.50 in

Specifications Dimension D

9.45 in

Specifications Dimension E

7.75 in

Specifications Dimension X

1.2 in

Specifications Dimension Y

8.37 in

Specifications Dimension Z

0.60 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Specification

ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D

Specifications Suncor Exclusive

Yes

Specifications Weight

0.42 lb

Specifications Working Load Limit Wll

500 lb

CAGE

1CXX6

NAICS

332510

PSC

4030

316 Stainless Steel Forged Hook and Hook Turnbuckle
