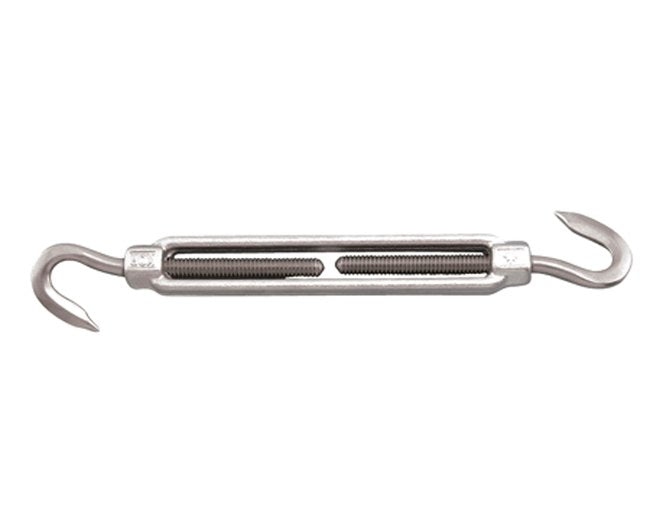

316 Stainless Steel Forged Hook and Hook Turnbuckle

Name: 316 Stainless Steel Forged Hook and Hook Turnbuckle
Brand: Suncor Stainless, Inc.
SKU: STA-e763fc
Price: 24.99 USD
Availability: OutOfStock

SKU:STA-e763fc

Get the best in durability and corrosion resistance with our grade 316 stainless steel Forged Hook & Hook Turnbuckle. Perfect for marine and industrial applications, meets ASTM F1145-05 (2011) standards.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your projects with our Forged Hook and Hook Turnbuckle crafted from grade 316 stainless steel for unrivaled corrosion resistance and durability. Ideal for marine and industrial use, this turnbuckle, meeting ASTM F1145-05 (2011) Type 1, Class E specifications, ensures top performance and safety. From 1/4" to 3/4" sizes, each detail, including the working load limit of 300 lb and ASME B30.26-2010 Section 26-2.0 compliance, is designed for reliability and excellence.

Product Specifications

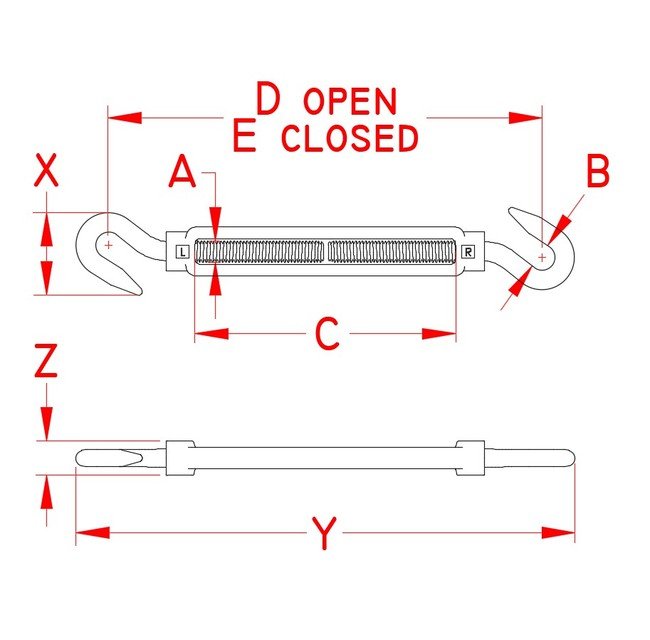

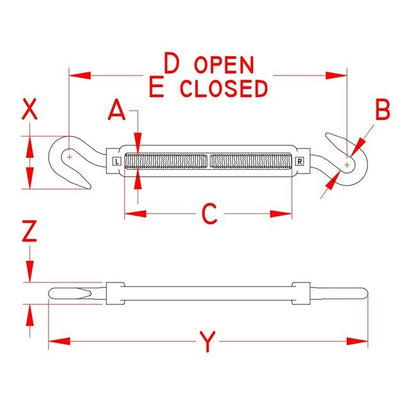

Specifications Dimension A

1/4 in

Specifications Dimension B

0.39 in

Specifications Dimension C

3.88 in

Specifications Dimension D

9.38 in

Specifications Dimension E

6.25 in

Specifications Dimension X

0.95 in

Specifications Dimension Y

7.00 in

Specifications Dimension Z

0.50 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Specification

ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D

Specifications Suncor Exclusive

Yes

Specifications Weight

0.23 lb

Specifications Working Load Limit Wll

300 lb

CAGE

1CXX6

NAICS

332510

PSC

4030
