316 Stainless Steel Forged Jaw and Eye Turnbuckle

Name: 316 Stainless Steel Forged Jaw and Eye Turnbuckle
Brand: Suncor Stainless, Inc.
SKU: STA-5042f2
Price: 39.99 USD
Availability: OutOfStock

SKU:STA-5042f2

High-grade 316 stainless steel turnbuckle for marine and industrial use, ASTM F1145-05 (2011) Type 1, Class H compliant.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

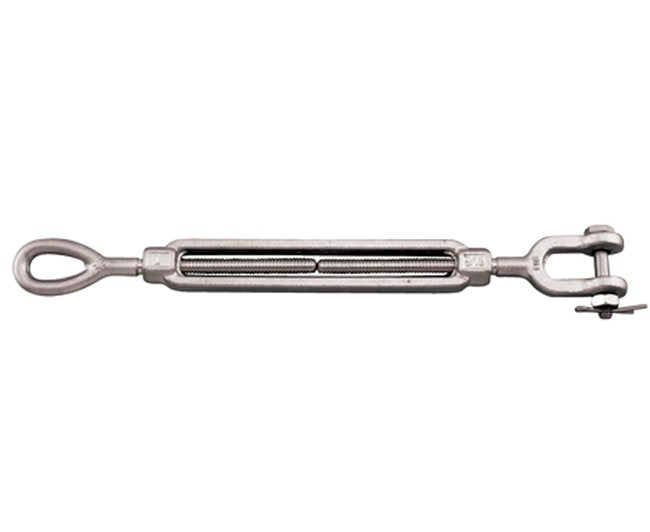

The 316 Stainless Steel Forged Jaw and Eye Turnbuckle boasts an open body design, available in sizes from 1/4" to 1-1/4" to suit various projects. Crafted from grade 316 stainless steel, known for exceptional corrosion resistance and durability, this turnbuckle is an excellent choice for marine and industrial applications. Compliant with ASTM specification F1145-05 (2011) Type 1, Class H, it meets stringent quality and safety standards, ensuring reliable performance in challenging environments.

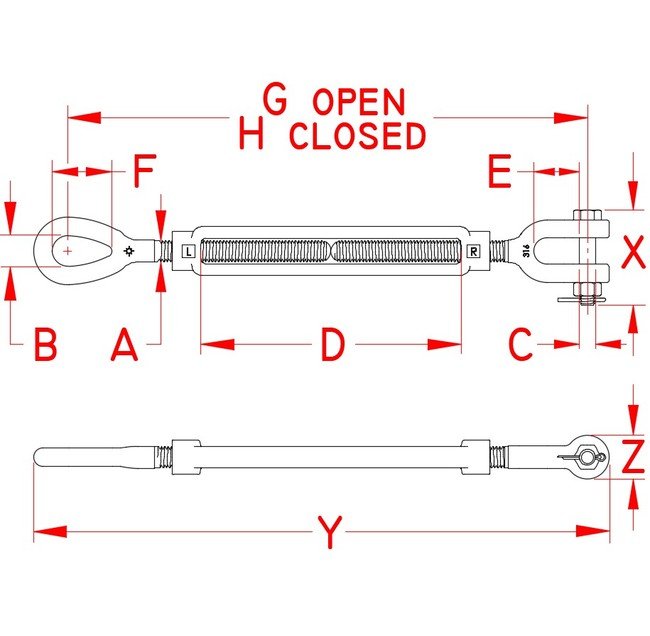

Product Specifications

Specifications Dimension A

1/2 in

Specifications Dimension B

0.75 in

Specifications Dimension C

0.38 in

Specifications Dimension D

6.00 in

Specifications Dimension E

1.04 in

Specifications Dimension F

1.36 in

Specifications Dimension G

17.40 in

Specifications Dimension H

12.50 in

Specifications Dimension X

2.36 in

Specifications Dimension Y

13.75 in

Specifications Dimension Z

1.06 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Mil Spec

Yes

Specifications Specification

ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655

Specifications Suncor Exclusive

Yes

Specifications Weight

1.58 lb

Specifications Working Load Limit Wll

2200 lb

CAGE

1CXX6

NAICS

332510

PSC

4030
