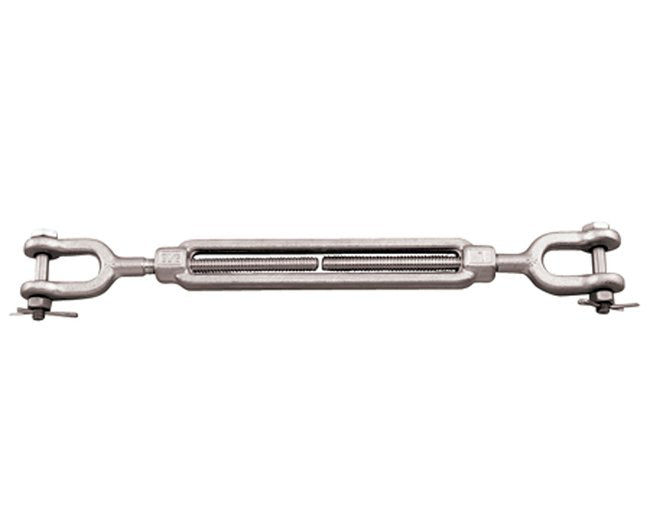

316 Stainless Steel Forged Jaw and Jaw Turnbuckle
316 Stainless Steel Forged Jaw and Jaw Turnbuckle
SKU:STA-163609
Grade 316 stainless steel turnbuckle with WLL of 500 lb, ideal for marine and industrial applications. Meets ASTM F1145-05 standards. Suncor exclusive.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
316 Stainless Steel Forged Jaw and Jaw Turnbuckle
$29.99
Quantity: 1
Claim Your Seller Account
316 Stainless Steel Forged Jaw and Jaw Turnbuckle
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your marine and industrial projects with the durable Forged Jaw and Jaw Turnbuckle made from grade 316 stainless steel. This corrosion-resistant turnbuckle, ranging from 1/4" to 1-1/2", meets ASTM F1145-05 (2011) Type 1, Class G standards. With a working load limit of 500 lb, it is ideal for various heavy-duty applications, while its Suncor exclusivity ensures top-notch quality and reliability.

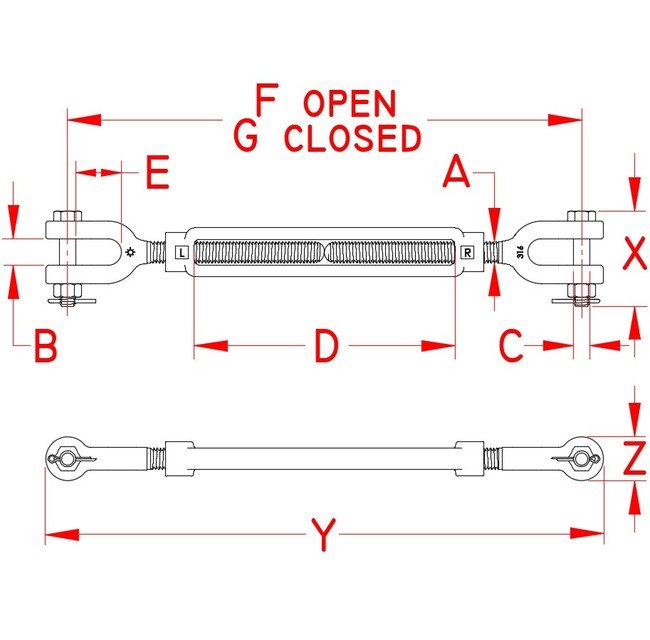

Product Specifications
Specifications Dimension A
1/4 in
Specifications Dimension B
0.44 in
Specifications Dimension C
0.25 in
Specifications Dimension D
4.00 in
Specifications Dimension E
0.63 in
Specifications Dimension F
11.40 in
Specifications Dimension G
7.75 in
Specifications Dimension X
1.57 in
Specifications Dimension Y
8.50 in
Specifications Dimension Z
0.51 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655
Specifications Suncor Exclusive
Yes
Specifications Weight
0.4 lb
Specifications Working Load Limit Wll
500 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
