316 Stainless Steel Forged Jaw & Jaw Swivel - Suncor MIL-DTL-32655 Compliant

Name: 316 Stainless Steel Forged Jaw & Jaw Swivel - Suncor MIL-DTL-32655 Compliant
Brand: Suncor Stainless, Inc.
SKU: STA-e851c3
Price: 59.99 USD
Availability: OutOfStock

SKU:STA-e851c3

Premium 316 Stainless Steel Swivel for precise lifting & rigging, MIL-DTL-32655 compliant.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

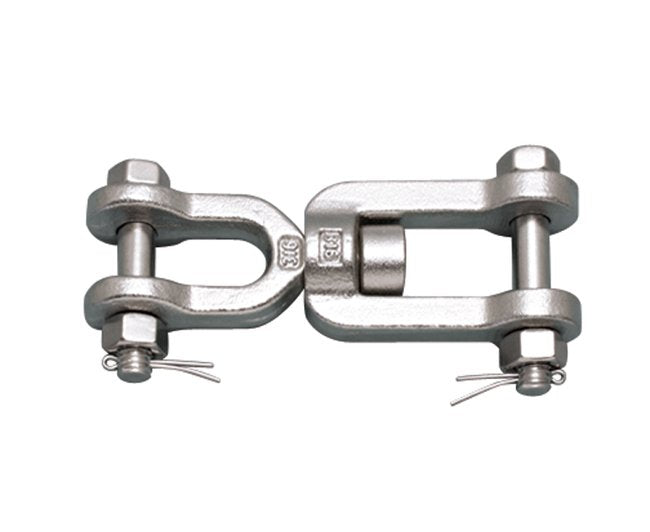

The 316 Stainless Steel Forged Jaw & Jaw Swivel by Suncor is engineered for precision lifting and rigging applications, eliminating twists in chains, wire ropes, or cordage. Crafted from grade 316 stainless steel, this swivel offers superior corrosion resistance and durability, with a remarkable working load limit of 1000 lbs. Ranging from 3/16" to 5/8", it facilitates frequent attachment and detachment needs. This product, designed as a positioning device, ensures safety and stability, meeting MIL-DTL-32655 specifications for assured performance in demanding environments.

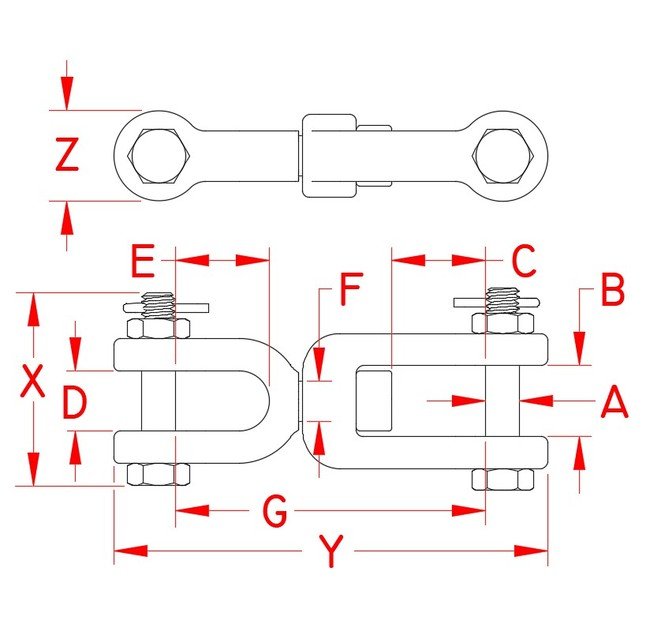

Product Specifications

Specifications Dimension A

1/4 in

Specifications Dimension B

0.60 in

Specifications Dimension C

0.85 in

Specifications Dimension D

0.50 in

Specifications Dimension E

0.85 in

Specifications Dimension F

0.31 in

Specifications Dimension G

2.69 in

Specifications Dimension X

1.85 in

Specifications Dimension Y

3.68 in

Specifications Dimension Z

0.75 in

Specifications Fabrication Type

Drop Forged

Specifications Made In

Import

Specifications Material

316 Stainless Steel

Specifications Mil Spec

Yes

Specifications Specification

MIL-DTL-32655

Specifications Suncor Exclusive

Yes

Specifications Weight

0.34 lb

Specifications Working Load Limit Wll

1000 lb

CAGE

1CXX6

NAICS

332999

PSC

4030

316 Stainless Steel Forged Jaw & Jaw Swivel - Suncor MIL-DTL-32655 Compliant
