316 Stainless Steel Forged Stub & Stub Turnbuckle
316 Stainless Steel Forged Stub & Stub Turnbuckle
SKU:STA-87141d
Premium 316 stainless steel turnbuckle for marine & industrial use. Meets ASTM F1145-05 (2011) Type 1, Class C standards. Working Load Limit: 1200 lb.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

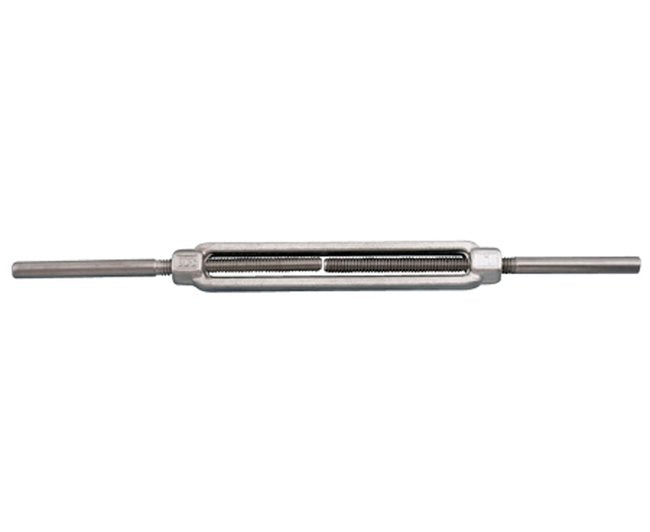

Enhance your marine and industrial projects with our Forged Stub and Stub Turnbuckle, made from grade 316 stainless steel for exceptional corrosion resistance. Available in sizes from 1/4" to 1-1/4", these turnbuckles meet ASTM specification F1145-05 (2011) Type 1, Class C standards. With a working load limit of 1200 lb, Suncor's exclusive drop forged stainless steel turnbuckles ensure durability and reliability for your applications.
Product Specifications

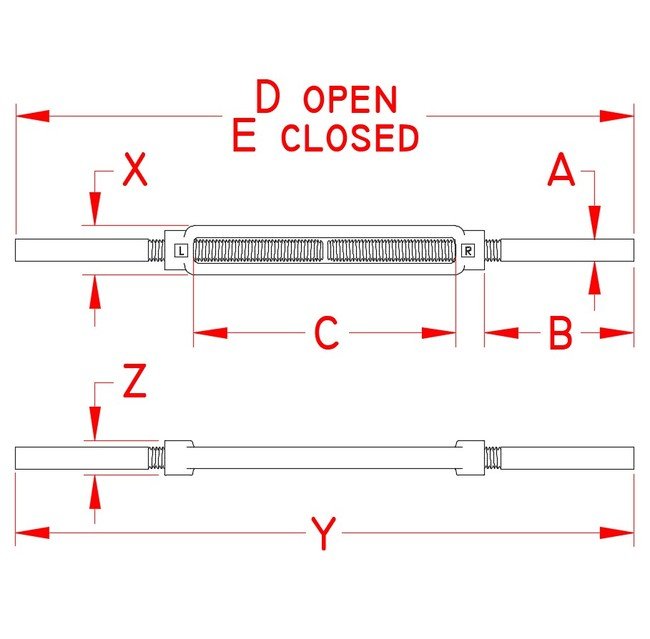

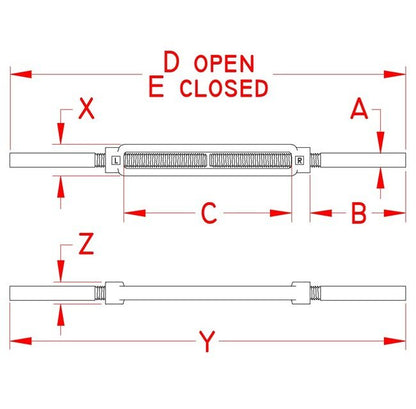

Specifications Dimension A
3/8 in
Specifications Dimension B
2.85 in
Specifications Dimension C
6.00 in
Specifications Dimension D
18.00 in
Specifications Dimension E
13.00 in
Specifications Dimension X
1.00 in
Specifications Dimension Y
13.00 in
Specifications Dimension Z
0.57 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655
Specifications Suncor Exclusive
Yes
Specifications Weight
0.65 lb
Specifications Working Load Limit Wll
1200 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
