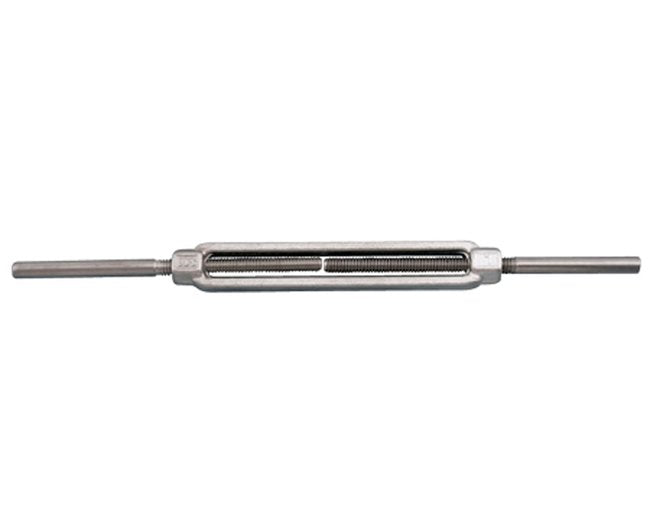

316 Stainless Steel Forged Stub Turnbuckle
316 Stainless Steel Forged Stub Turnbuckle
SKU:STA-c028e0
High-quality 316 stainless steel turnbuckles with ASTM F1145-05 (2011) Type 1, Class C compliance. Perfect for marine and industrial use.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
316 Stainless Steel Forged Stub Turnbuckle
$49.99
Quantity: 1
Claim Your Seller Account
316 Stainless Steel Forged Stub Turnbuckle
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior durability with our 316 stainless steel Forged Stub and Stub Turnbuckle. Ideal for marine and industrial applications, these turnbuckles meet ASTM F1145-05 (2011) Type 1, Class C standards, ensuring maximum corrosion resistance. Available in sizes from 1/4" to 1-1/4", with a Working Load Limit (WLL) of 5,200 lb, they offer the strength and reliability your projects demand.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

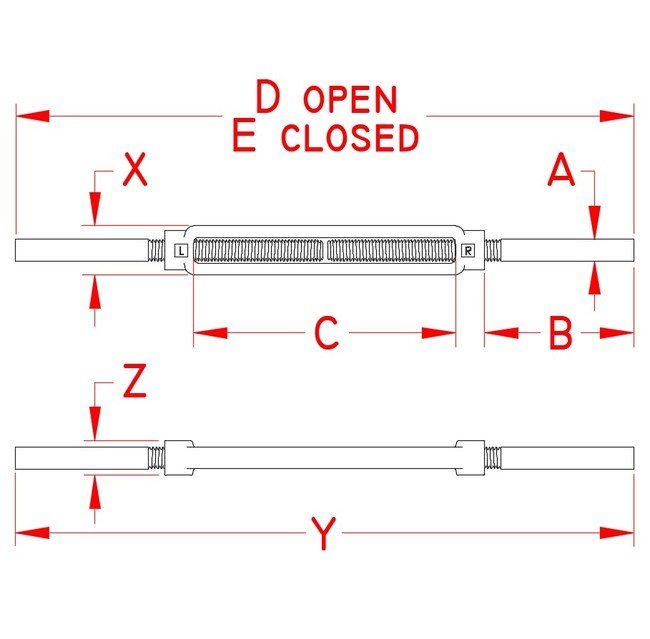

Specifications Dimension A
3/4 in
Specifications Dimension B
3.85 in
Specifications Dimension C
6.00 in
Specifications Dimension D
22.00 in
Specifications Dimension E
16.00 in
Specifications Dimension X
1.71 in
Specifications Dimension Y
16.00 in
Specifications Dimension Z
1.15 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655
Specifications Suncor Exclusive
Yes
Specifications Weight
3.19 lb
Specifications Working Load Limit Wll
5,200 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
