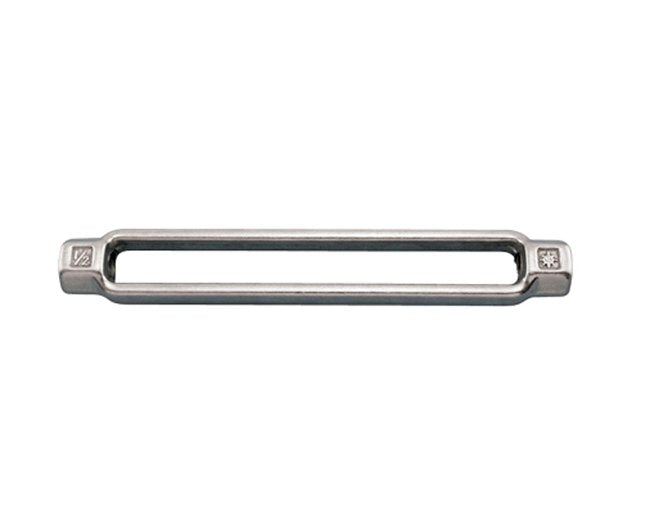

316 Stainless Steel Forged Turnbuckle Body
316 Stainless Steel Forged Turnbuckle Body
SKU:STA-a80bc1
Premium 316 Stainless Steel Turnbuckle Body for marine and industrial applications. ASTM & MIL-DTL compliant, Suncor exclusive.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


Upgrade your marine and industrial projects with our Forged Turnbuckle Body. Crafted from grade 316-NM stainless steel, this body offers superior corrosion resistance and durability. Compliant with ASTM F1145-92 Type 1 and MIL-DTL-32655 standards, ensuring safety and reliability for your applications. Available in sizes from 1/4" to 1-1/4" with a working load limit of 2200 lb, this Suncor-exclusive and drop forged component is a top choice for demanding environments.
Product Specifications

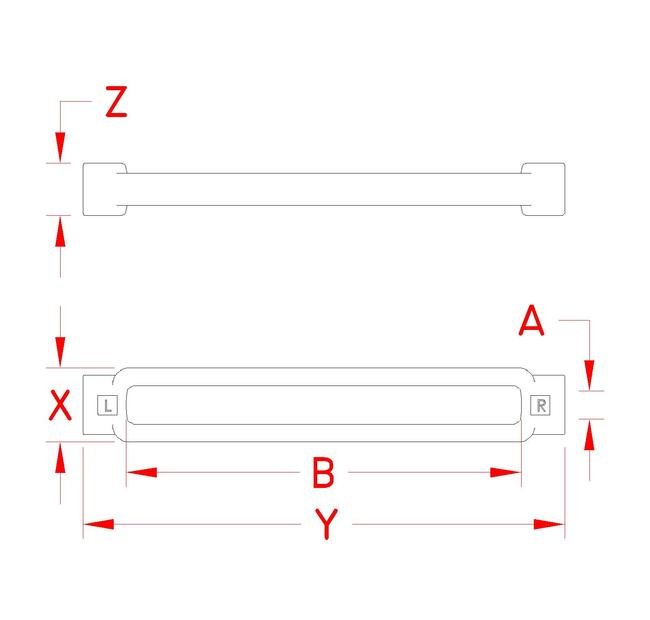

Specifications Dimension A
1/2 in
Specifications Dimension B
6.00 in
Specifications Dimension X
1.14 in
Specifications Dimension Y
7.56 in
Specifications Dimension Z
0.80 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASTM F1145-92 | MIL-DTL-32655 | Type 1
Specifications Suncor Exclusive
Yes
Specifications Weight
0.55 lb
Specifications Working Load Limit Wll
2200 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
