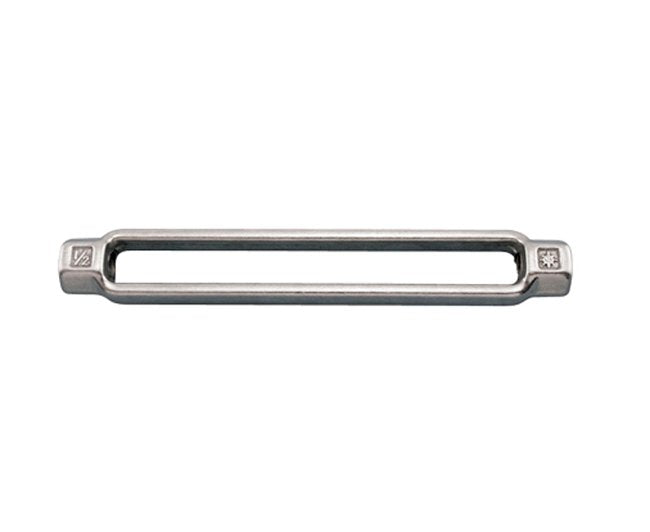

316 Stainless Steel Forged Turnbuckle Body - ASTM F1145-92 Type 1

316 Stainless Steel Forged Turnbuckle Body - ASTM F1145-92 Type 1

SKU:STA-9b8d15

Durable 316 stainless steel turnbuckle body, ASTM F1145-92 Type 1 compliant, ideal for marine/industrial use.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

316 Stainless Steel Forged Turnbuckle Body - ASTM F1145-92 Type 1

316 Stainless Steel Forged Turnbuckle Body - ASTM F1145-92 Type 1

$49.99

Quantity: 1

Claim Your Seller Account

316 Stainless Steel Forged Turnbuckle Body - ASTM F1145-92 Type 1

316 Stainless Steel Forged Turnbuckle Body - ASTM F1145-92 Type 1

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 316 Stainless Steel Forged Turnbuckle Body is crafted to precision using grade 316 stainless steel, ensuring superior corrosion resistance and durability. Designed for marine and industrial applications, this turnbuckle body comes in sizes ranging from 1/4" to 1-1/4" to suit various projects. Compliant with ASTM specification F1145-92 Type 1, this drop forged body meets stringent quality standards, offering a Working Load Limit (WLL) of 8,000 lb. Trust in this product for reliability and performance in demanding environments.

Product Specifications

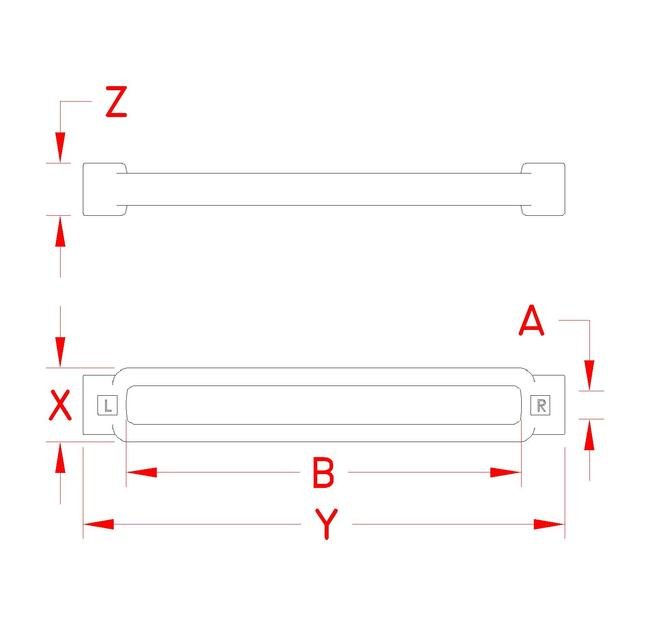

Specifications Dimension A
1 in
Specifications Dimension B
12.00 in
Specifications Dimension X
2.20 in
Specifications Dimension Y
14.50 in
Specifications Dimension Z
1.59 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASTM F1145-92 | MIL-DTL-32655 | Type 1
Specifications Suncor Exclusive
Yes
Specifications Weight
4.18 lb
Specifications Working Load Limit Wll
8,000 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
