316 Stainless Steel Forged Turnbuckle Body - Suncor
316 Stainless Steel Forged Turnbuckle Body - Suncor
SKU:STA-83d2c6
Premium 316 Stainless Steel Forged Turnbuckle Body by Suncor - ASTM F1145-92 Type 1 Compliant. Ideal for marine and industrial applications.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

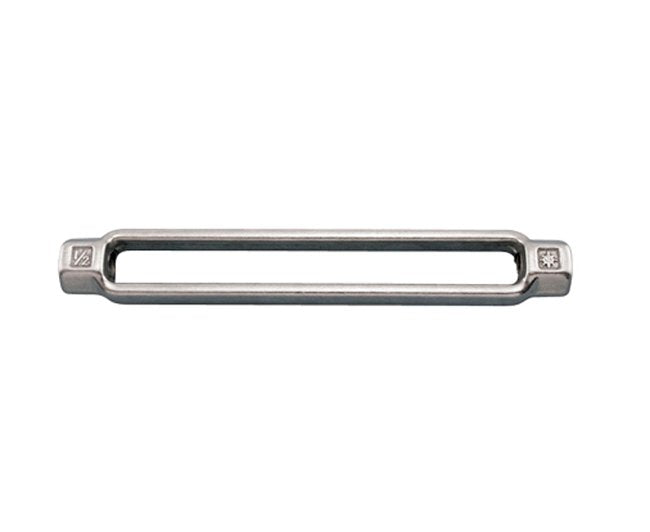

Upgrade your industrial and marine projects with the 316 Stainless Steel Forged Turnbuckle Body by Suncor. This drop-forged body, available in sizes from 1/4" to 1-1/4", delivers exceptional corrosion resistance and durability. Compliant with ASTM F1145-92 Type 1 and MIL-DTL-32655 standards, it ensures reliability in critical applications. With a working load limit of 1200 lb and precise dimensions, this turnbuckle component is a top choice for quality-driven projects.
Product Specifications

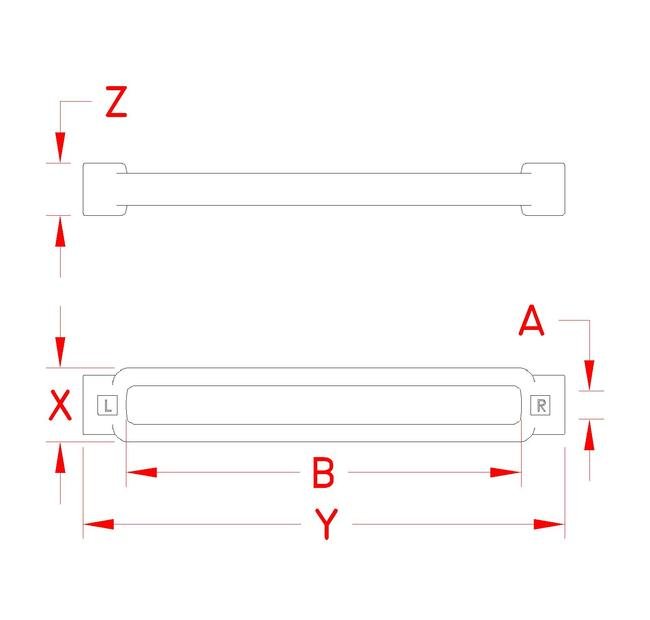

Specifications Dimension A
3/8 in
Specifications Dimension B
6.00 in
Specifications Dimension X
0.94 in
Specifications Dimension Y
7.18 in
Specifications Dimension Z
0.67 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASTM F1145-92 | MIL-DTL-32655 | Type 1
Specifications Suncor Exclusive
Yes
Specifications Weight
0.35 lb
Specifications Working Load Limit Wll
1200 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
