316 Stainless Steel Headboard Shackle with Captive Pin - 5/16 Inch
316 Stainless Steel Headboard Shackle with Captive Pin - 5/16 Inch
SKU:WIR-5bf779
High-quality 316 stainless steel headboard shackle with secure captive pin design. Ideal for institutional and consumer use.
Regular price
$17.99
Regular price
Sale price
$17.99
Unit price
per
Initiate Order
316 Stainless Steel Headboard Shackle with Captive Pin - 5/16 Inch
$17.99
Quantity: 1
Claim Your Seller Account
316 Stainless Steel Headboard Shackle with Captive Pin - 5/16 Inch
$17.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

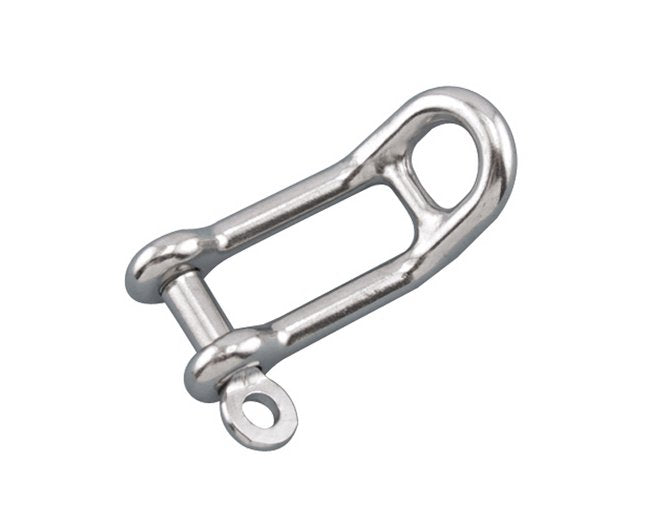

The 5/16 Inch Size A 316 Stainless Steel Headboard Shackle with Captive Pin is a durable and reliable wire rope hardware essential. Made from high-quality 316 stainless steel, this precision cast shackle offers a Working Load Limit (WLL) of 1000 lb, ensuring secure fastening in various applications. The captive pin design enhances safety by preventing accidental loss, meeting stringent institutional procurement standards for reliability and compliance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note 0
Screw pin is captive and not removable. When it's fully opened, the end of the pin will sit flush with the inside of the shackle.

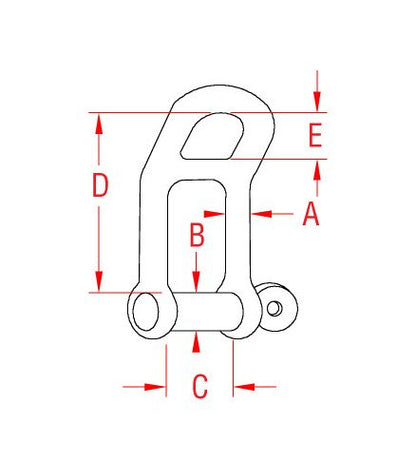

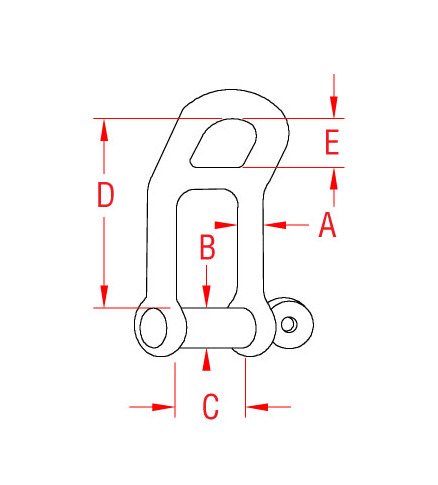

Specifications C
0.63 "
Specifications D
2.20 "
Specifications Dimension B
0.38 "
Specifications E
0.58 "
Specifications Key Features
Import | Precision Cast
Specifications Material
316 Stainless Steel
Specifications Shackle Type
Headboard Shackle
Specifications Size A
5/16 "
Specifications Weight
0.22 lb
Specifications Wll
1000 lb
CAGE
0T9L4
NAICS
332999
PSC
5340
