316 Stainless Steel Hoist Anchor Base - 1/4 inch

Name: 316 Stainless Steel Hoist Anchor Base - 1/4 inch
Brand: Lexco Cable Manufacturing
SKU: WIR-7dd472
Price: 24.99 USD
Availability: OutOfStock

SKU:WIR-7dd472

Premium 316 Stainless Steel Hoist Anchor Base - Corrosion Resistant, 1000 lb WLL, Precision Machined

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

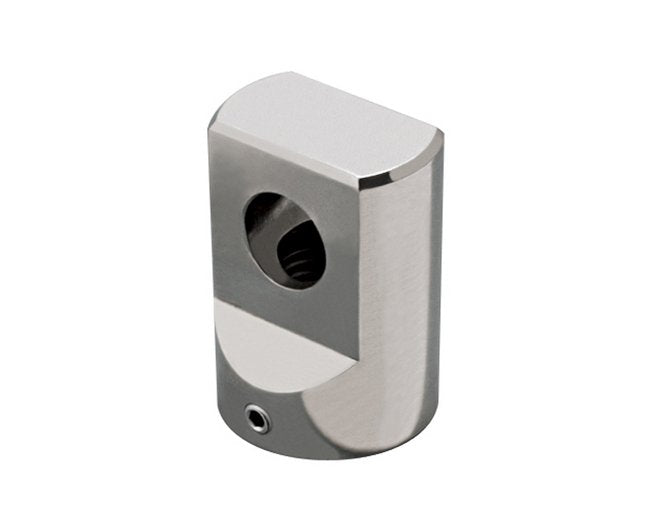

The 1/4 Inch Nominal Size 316 Stainless Steel Hoist Anchor Base is a precision machined product designed for maximum corrosion resistance, specifically for use with standard shackle types and sizes. This new Suncor exclusive ensures durability with a Working Load Limit (WLL) of 1000 lbs, making it ideal for heavy-duty applications. Crafted from high-quality 316 stainless steel, it meets stringent industry standards for longevity and reliability.

Product Specifications

Note 0

316 stainless steel for maximum corrosion resistance. Designed for use with standard shackle types and sizes.

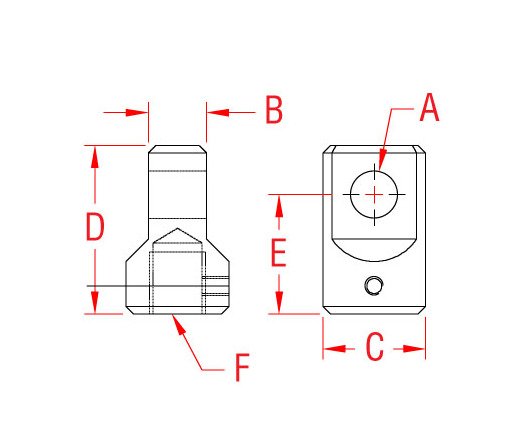

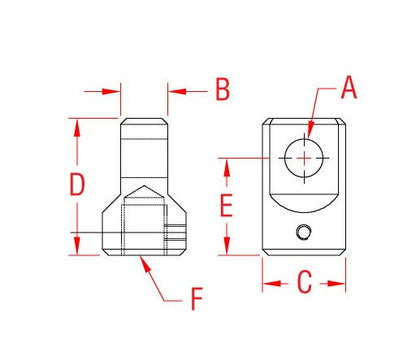

Specifications C

1.00 "

Specifications D

0.75 "

Specifications Dimension A

0.31 "

Specifications Dimension B

1.38 "

Specifications E

3/8 in.-16 (UNC Thread)

Specifications F

0.45 "

Specifications Key Features

Import | New Product | Precision Machined | Suncor Exclusive

Specifications Material

316 Stainless Steel

Specifications Nominal Size

1/4 "

Specifications Weight

0.12 lb

Specifications Wll

1000 lb

CAGE

0T9L4

NAICS

332510

PSC

4030

316 Stainless Steel Hoist Anchor Base - 1/4 inch
