316 Stainless Steel Hoist Anchor Base - 1 Inch

Name: 316 Stainless Steel Hoist Anchor Base - 1 Inch
Brand: Lexco Cable Manufacturing
SKU: WIR-5fece1
Price: 89.99 USD
Availability: OutOfStock

SKU:WIR-5fece1

Durable 1 Inch 316 Stainless Steel Hoist Anchor Base for heavy-duty lifting operations. Maximum corrosion resistance and 10,000 lb WLL.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

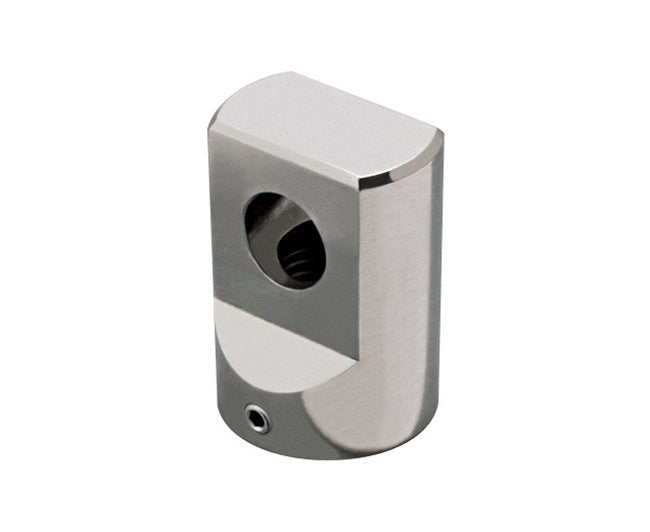

The 1 Inch Nominal Size 316 Stainless Steel Hoist Anchor Base is precision machined for durability and maximum corrosion resistance. This anchor base, designed for standard shackle use, offers a Working Load Limit of 10,000 lb. Ideal for heavy-duty lifting operations, it meets stringent industry standards, ensuring reliable performance in challenging environments.

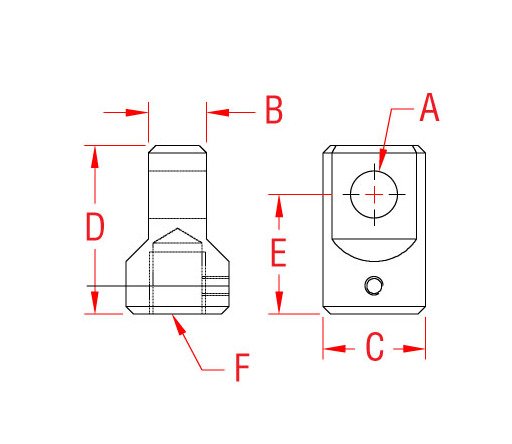

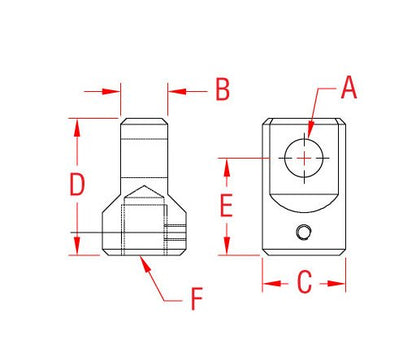

Product Specifications

Note 0

316 stainless steel for maximum corrosion resistance. Designed for use with standard shackle types and sizes.

Specifications C

2.67 "

Specifications D

2.75 "

Specifications Dimension A

1.13 "

Specifications Dimension B

4.00 "

Specifications E

1-1/4 in.-7 (UNC Thread)

Specifications F

1.60 "

Specifications Key Features

Import | New Product | Precision Machined | Suncor Exclusive

Specifications Material

316 Stainless Steel

Specifications Nominal Size

1 "

Specifications Weight

4.23 lb

Specifications Wll

10,000 lb

CAGE

0T9L4

NAICS

332510

PSC

4030
