316 Stainless Steel Hoist Anchor Base - 5/8 Inch

316 Stainless Steel Hoist Anchor Base - 5/8 Inch

SKU:WIR-ba91c6

High-grade 316 stainless steel Hoist Anchor Base, 5/8 Inch size, 4,000 lb WLL, precision machined for durability.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

316 Stainless Steel Hoist Anchor Base - 5/8 Inch

316 Stainless Steel Hoist Anchor Base - 5/8 Inch

$49.99

Quantity: 1

Claim Your Seller Account

316 Stainless Steel Hoist Anchor Base - 5/8 Inch

316 Stainless Steel Hoist Anchor Base - 5/8 Inch

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

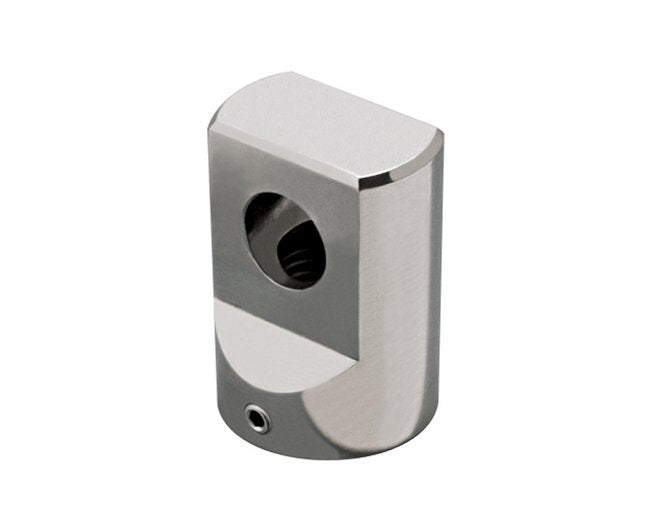

The 5/8 Inch Nominal Size 316 Stainless Steel Hoist Anchor Base is a heavy-duty and corrosion-resistant solution for hoisting applications. Manufactured to precision from high-grade 316 stainless steel, this anchor base offers maximum durability and reliability. With a Working Load Limit of 4,000 lb, it meets strict industry standards for safety and performance. Compatible with various standard shackle types, this anchor base is designed for seamless integration and long-lasting use in demanding environments.

Product Specifications

Note 0
316 stainless steel for maximum corrosion resistance. Designed for use with standard shackle types and sizes.

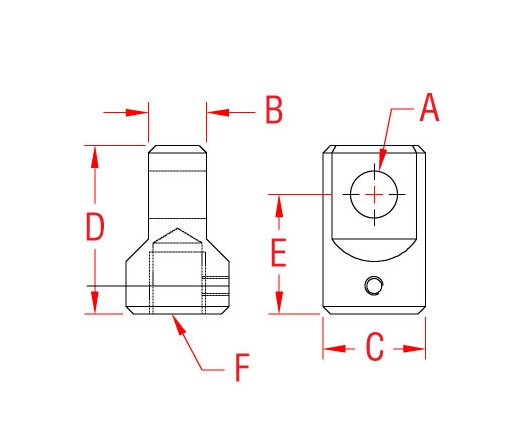

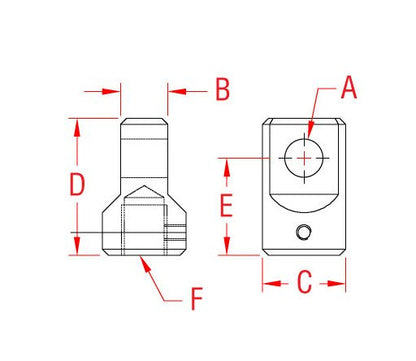

Specifications C
1.86 "
Specifications D
1.75 "
Specifications Dimension A
0.75 "
Specifications Dimension B
2.67 "
Specifications E
7/8 in.-9 (UNC Thread)
Specifications F
1.01 "
Specifications Key Features
Import | New Product | Precision Machined | Suncor Exclusive
Specifications Material
316 Stainless Steel
Specifications Nominal Size
5/8 "
Specifications Weight
1.11 lb
Specifications Wll
4,000 lb
CAGE
0T9L4
NAICS
332510
PSC
4030
