316 Stainless Steel Instrumentation Manifold Valve
316 Stainless Steel Instrumentation Manifold Valve
SKU:SM2-e2bc4d
Premium 316 stainless steel manifold valve for high-pressure applications, factory tested and reliable for industrial use.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
316 Stainless Steel Instrumentation Manifold Valve
$129.99
Quantity: 1
Claim Your Seller Account
316 Stainless Steel Instrumentation Manifold Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SM2V Series Remote Mounting Horizontal Style Instrumentation Manifold Valve is designed for precision and durability, featuring a pressure rating of 6000 psig | 413 bar at 100°F. With a maximum allowable leak rate of 0.1 cm³/min and all 316 stainless steel construction, this valve ensures reliable performance in demanding industrial environments. Each valve is factory tested to meet stringent standards, making it a trusted choice for institutional and government buyers.
Product Specifications
Features Features

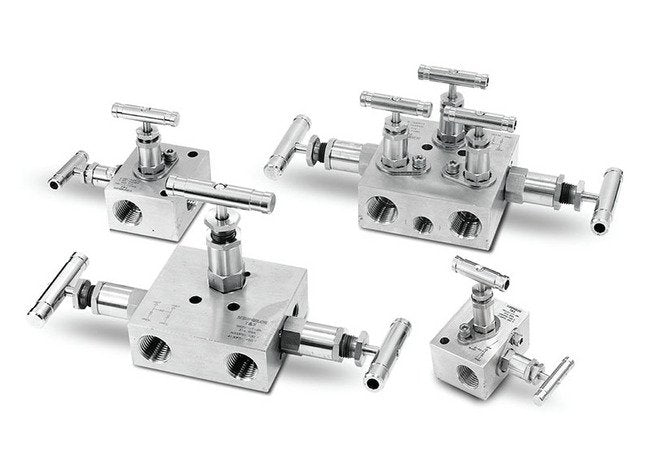

2-,3-,and 5-valves Instrument manifolds valves.All 316 stainless steel construction with PTFE packingEach valve of every manifold is factory tested with nitrogen gas to a maximum allowable leak rate of 0.1scc/min.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Bleed End Connections
1/2 in. Female National Pipe Thread (FNPT)
Technical Specs Instrument End Connections
1/2 in. Female National Pipe Thread (FNPT)
Technical Specs Maximum Allowable Leak Rate
0.1 cm³/min
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
6000 psig | 413 bar
Technical Specs Process End Connections
1/2 in. Female National Pipe Thread (FNPT)
Technical Specs Temperature With Optional Grafoil Packing
1200 ºF | 648 ºC

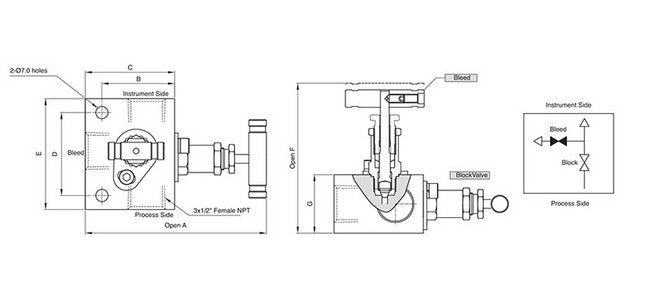

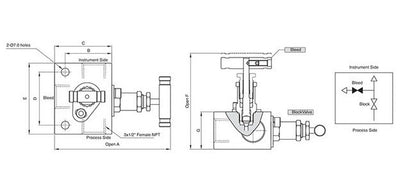

Weight Dimension Dimension A
103.5 mm
Weight Dimension Dimension B
41.5 mm
Weight Dimension Dimension C
51 mm
Weight Dimension Dimension D
47.5 mm
Weight Dimension Dimension E
63.5 mm
Weight Dimension Dimension F
85.9 mm
Weight Dimension Dimension G
33.5 mm
