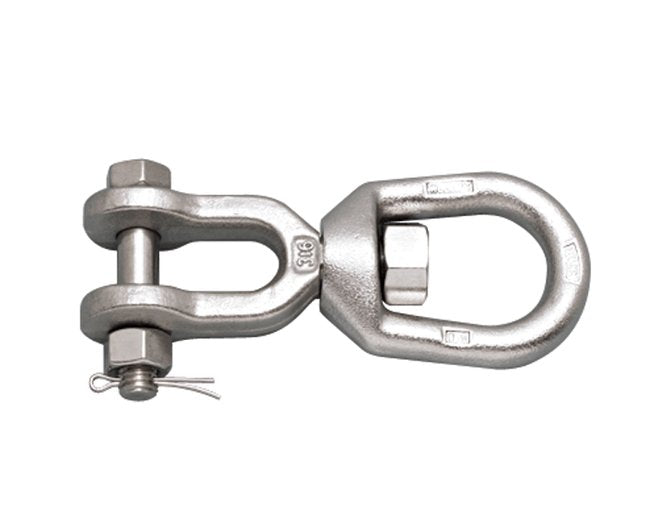

316 Stainless Steel Jaw & Eye Swivel

316 Stainless Steel Jaw & Eye Swivel

SKU:STA-30bddd

Durable 316 stainless steel jaw & eye swivel for lifting applications, with 1,600 lb WLL & precise positioning. Sizes range from 3/16" to 5/8".

Regular price $39.99
Regular price Sale price $39.99
Sale

Initiate Order

316 Stainless Steel Jaw & Eye Swivel

316 Stainless Steel Jaw & Eye Swivel

$39.99

Quantity: 1

Claim Your Seller Account

316 Stainless Steel Jaw & Eye Swivel

316 Stainless Steel Jaw & Eye Swivel

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 316 stainless steel jaw and eye swivel from Suncor are essential for precise lifting and rigging applications. With a working load limit of 1,600 lbs, these swivels offer exceptional corrosion resistance and durability. Meeting Federal Specification: RR-C-271F Type VII, Class 3 standards, these swivels are perfect for applications requiring frequent attachment and detachment. Designed as a positioning device, this swivel ensures stability under load and comes in various sizes from 3/16" to 5/8".

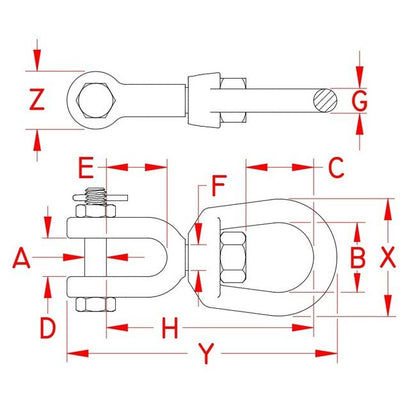

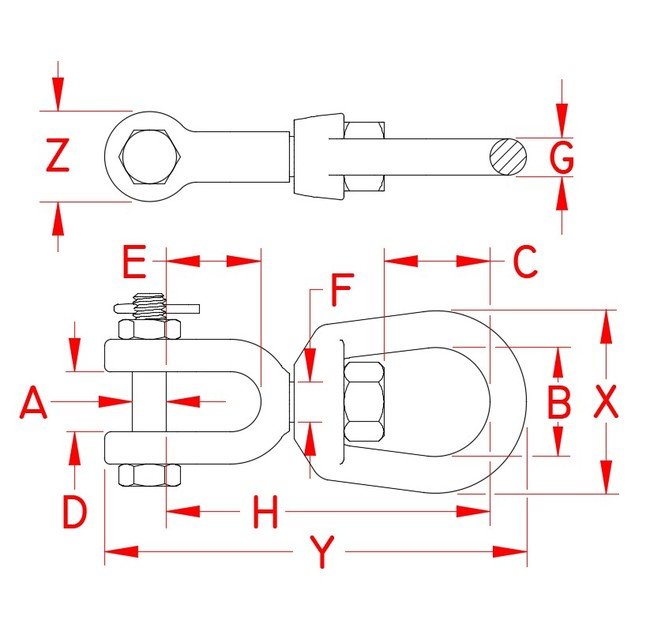

Product Specifications

Specifications Dimension A
5/16 in
Specifications Dimension B
1.25 in
Specifications Dimension C
1.17 in
Specifications Dimension D
0.56 in
Specifications Dimension E
0.88 in
Specifications Dimension F
0.38 in
Specifications Dimension G
0.38 in
Specifications Dimension H
3.31 in
Specifications Dimension X
2.00 in
Specifications Dimension Y
4.27 in
Specifications Dimension Z
0.99 in
Specifications Fabrication Type
Drop Forged
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
Class 2 | Fed. Spec. RR-C-271F | MIL-DTL-32655 | Type VII
Specifications Suncor Exclusive
Yes
Specifications Weight
0.53 lb
Specifications Working Load Limit Wll
1,600 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
