316 Stainless Steel Long D Shackle with Captive Pin

316 Stainless Steel Long D Shackle with Captive Pin

SKU:STA-efc833

316 Stainless Steel Long D Shackle with Captive Pin - Self-locking, corrosion-resistant, ideal for marine use.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

316 Stainless Steel Long D Shackle with Captive Pin

316 Stainless Steel Long D Shackle with Captive Pin

$24.99

Quantity: 1

Claim Your Seller Account

316 Stainless Steel Long D Shackle with Captive Pin

316 Stainless Steel Long D Shackle with Captive Pin

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

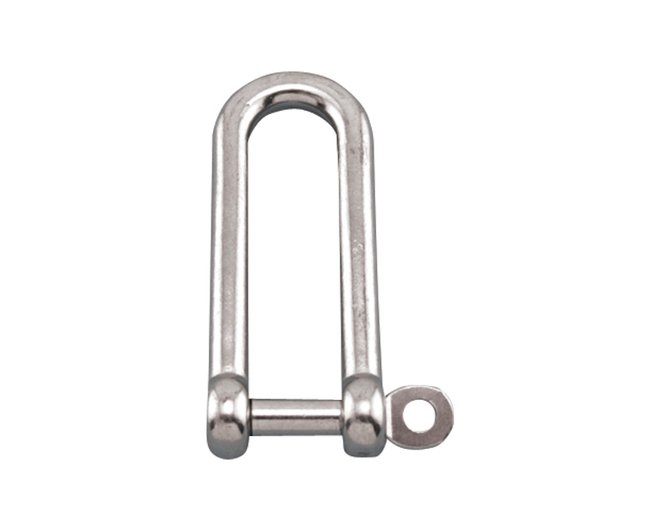

The 316 Stainless Steel Long D Shackle with Captive Pin features a self-locking mechanism to prevent the pin from backing out. Crafted from grade 316 stainless steel, this shackle offers exceptional corrosion resistance and durability, making it ideal for marine applications. The captive pin is integrated into the shackle body, ensuring it remains secure and eliminating the risk of accidental drops in water. Available in various sizes, with a Working Load Limit (WLL) of 1000 lb, this precision cast shackle from Suncor meets stringent quality standards for reliable performance in demanding environments.

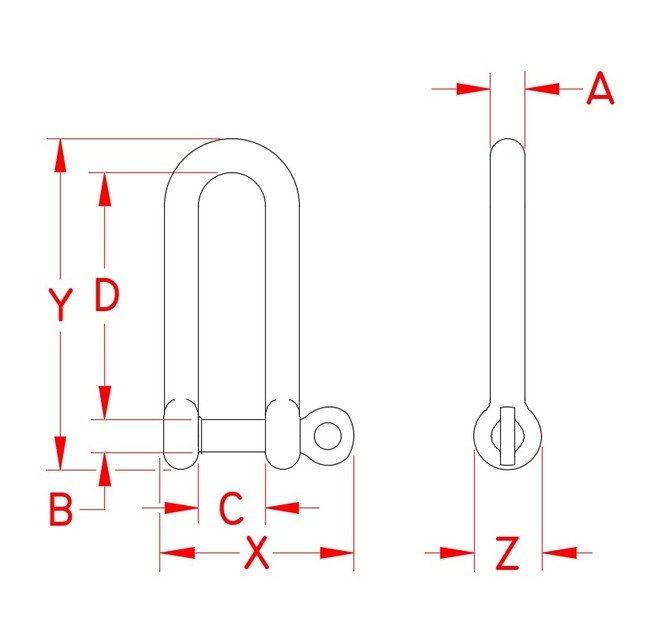

Product Specifications

Specifications Dimension A
5/16 in
Specifications Dimension B
0.31 in
Specifications Dimension C
0.61 in
Specifications Dimension D
2.36 in
Specifications Dimension X
1.76 in
Specifications Dimension Y
3.17 in
Specifications Dimension Z
0.64 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.192 lb
Specifications Working Load Limit Wll
1000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
