316 Stainless Steel Long D Shackle with Captive Pin 3/16"

316 Stainless Steel Long D Shackle with Captive Pin 3/16"

SKU:WIR-41cf8c

Heavy-duty 316 Stainless Steel Long D Shackle with Captive Pin - 3/16" Size, WLL 500 lbs

Regular price $14.99
Regular price Sale price $14.99
Sale

Initiate Order

316 Stainless Steel Long D Shackle with Captive Pin 3/16"

316 Stainless Steel Long D Shackle with Captive Pin 3/16"

$14.99

Quantity: 1

Claim Your Seller Account

316 Stainless Steel Long D Shackle with Captive Pin 3/16"

316 Stainless Steel Long D Shackle with Captive Pin 3/16"

$14.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

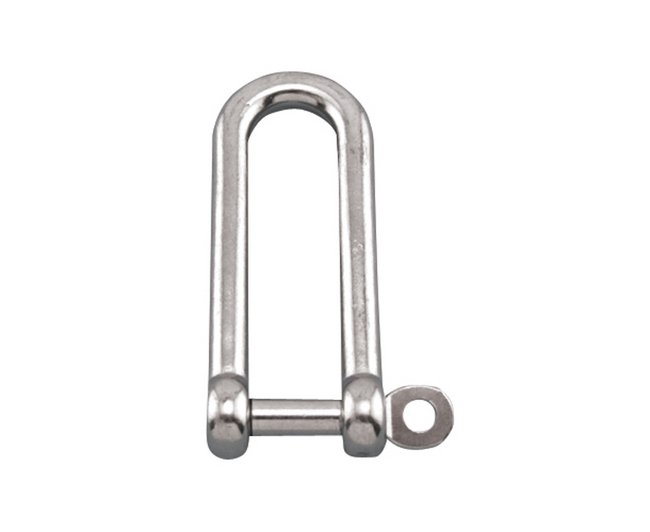

The 316 Stainless Steel Long D Shackle with Captive Pin in 3/16" Size A is a durable and reliable hardware tool designed for heavy-duty applications. With a working load limit of 500 lbs, this precision-cast shackle ensures secure connections in various rigging and lifting scenarios. The captive screw pin feature enhances safety by preventing accidental disengagement. Crafted from high-quality 316 stainless steel, this shackle offers superior corrosion resistance, making it ideal for marine, industrial, and outdoor environments.

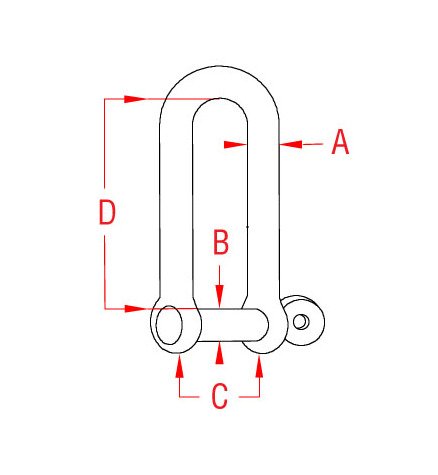

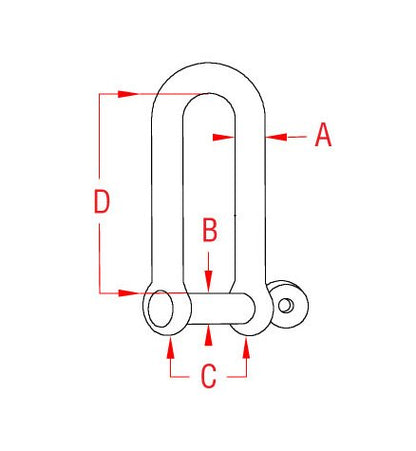

Product Specifications

Note 0
Screw pin is captive and not removable. When it's fully opened, the end of the pin will sit flush with the inside of the shackle.
Specifications C
0.39 "
Specifications D
1.47 "
Specifications Dimension B
0.19 "
Specifications Key Features
Import | Precision Cast
Specifications Material
316 Stainless Steel
Specifications Shackle Type
D Shackle
Specifications Size A
3/16 "
Specifications Weight
0.05 lb
Specifications Wll
500 lb
CAGE
0T9L4
NAICS
332999
PSC
5340
