316 Stainless Steel Long D Shackle with Captive Pin - 5/16 inch Size A

316 Stainless Steel Long D Shackle with Captive Pin - 5/16 inch Size A

SKU:WIR-efc833

Durable 316 Stainless Steel Long D Shackle with Captive Pin - Ideal for industrial, marine, and critical infrastructure projects.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

316 Stainless Steel Long D Shackle with Captive Pin - 5/16 inch Size A

316 Stainless Steel Long D Shackle with Captive Pin - 5/16 inch Size A

$24.99

Quantity: 1

Claim Your Seller Account

316 Stainless Steel Long D Shackle with Captive Pin - 5/16 inch Size A

316 Stainless Steel Long D Shackle with Captive Pin - 5/16 inch Size A

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

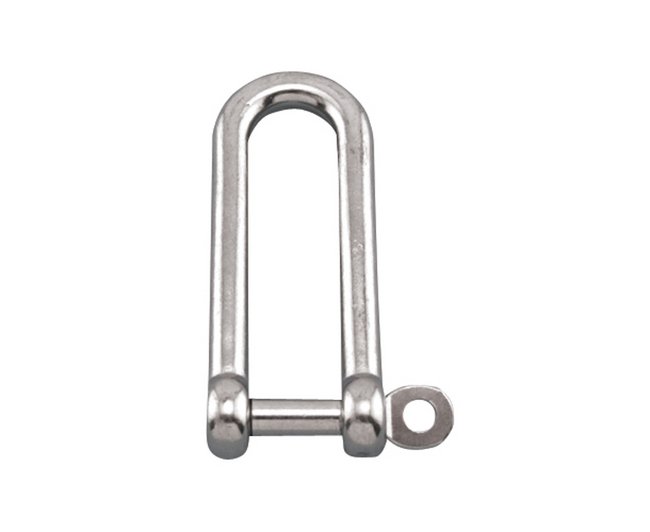

The 5/16-inch Size A 316 Stainless Steel Long D Shackle with Captive Pin is a superior choice for demanding applications. Constructed from high-grade 316 stainless steel, it offers exceptional durability and corrosion resistance, ensuring reliable performance in harsh environments. With a Working Load Limit (WLL) of 1000 lb, this D shackle guarantees secure connections. The precision cast design and captive screw pin make installation swift and convenient. Compliant with Federal/DoD procurement standards and crafted for excellence, this shackle is ideal for industrial, marine, and critical infrastructure projects.

Product Specifications

Note 0
Screw pin is captive and not removable. When it's fully opened, the end of the pin will sit flush with the inside of the shackle.

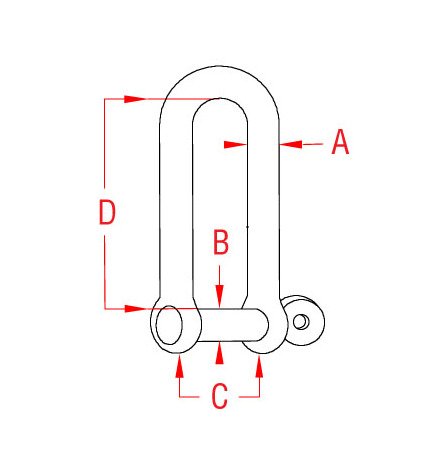

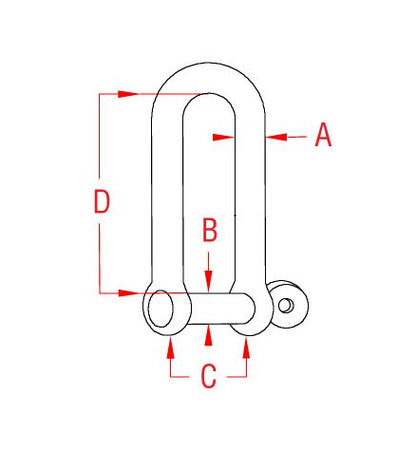

Specifications C
0.61 "
Specifications D
2.36 "
Specifications Dimension B
0.31 "
Specifications Key Features
Import | Precision Cast
Specifications Material
316 Stainless Steel
Specifications Shackle Type
D Shackle
Specifications Size A
5/16 "
Specifications Weight
0.18 lb
Specifications Wll
1000 lb
CAGE
0T9L4
NAICS
332999
PSC
5340
