316 Stainless Steel Mini-Check Valve - 3/8" 3.50 psi M3 Style

Name: 316 Stainless Steel Mini-Check Valve - 3/8" 3.50 psi M3 Style
Brand: Check-All Valve Mfg. Co.
SKU: M1T-b8c27b
Price: 79.99 USD
Availability: OutOfStock

SKU:M1T-b8c27b

Durable 316 Stainless Steel Mini-Check Valve with precise 3.50 psi cracking pressure, ideal for varied industrial applications.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

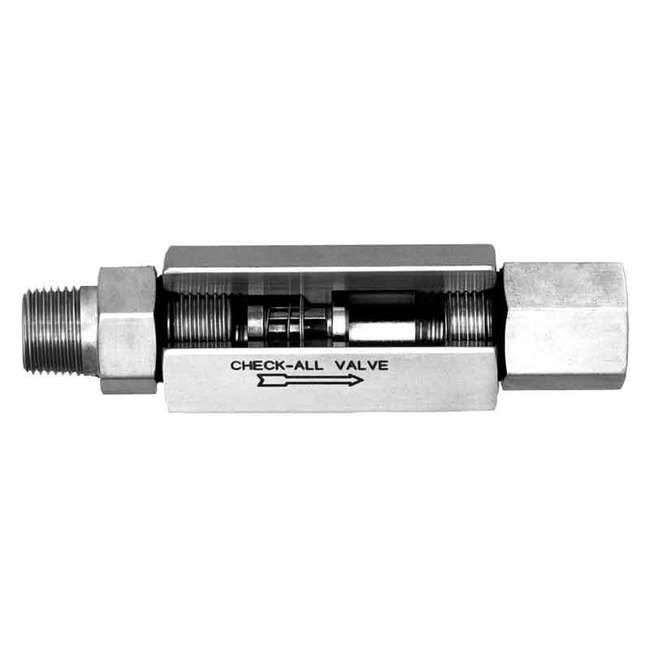

The 316 Stainless Steel Mini-Check Valve in M3 Style combines durability with precision control. Its versatile three-piece construction allows for various end fittings, catering to diverse applications. With a standard cracking pressure of 3.50 psi, this valve can be used for low-pressure relief or as a vacuum breaker. Engineered for minimal pressure drop, this valve ensures efficient performance and reliability. Made in the USA, this valve offers flexibility and robustness ideal for industrial applications.

Product Specifications

Note

When ordering styles M5 through M8 be sure to specify whether compression (-C) or 37º flare (-F).Made in USA.Many valves in this series can be supplied with B16.34 certification. Consult the factory for more information.

Specifications Body Material

316 Stainless Steel = SS | Brass = BR | Carbon Steel = CS

Specifications Certifications

European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified

Specifications Nominal Pipe And Tube Size

3/8 in

Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei

5000 psig

Specifications Note For Material

Listed above are the most common material selections. Please contact the factory for additional options.

Specifications Note For Non Shock Pressure Rating At 100 Degree

Consult factory for P-T rating above 100 ºF.

Specifications Seat Material

Specifications Size Code

Specifications Special Options

C = Compression Tube (M5 - M8 only) | F = Flared Tube (M5 - M8 only) | O = Outer O-Ring Seals Same as Seat | T = FEP Encapsulated Spring

Specifications Spring Material

Specifications Standard Cracking Pressure

3.50 psi

Specifications Standard End Fitting O Ring Material

Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Polytetrafluoroethylene (PTFE) = TF

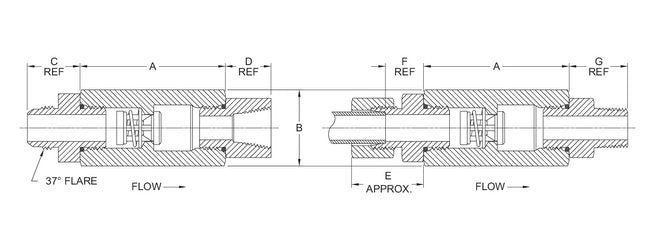

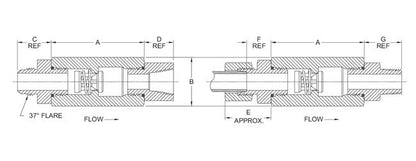

Specifications Valve Style

M3 - Male Pipe Inlet - Female Pipe Outlet
