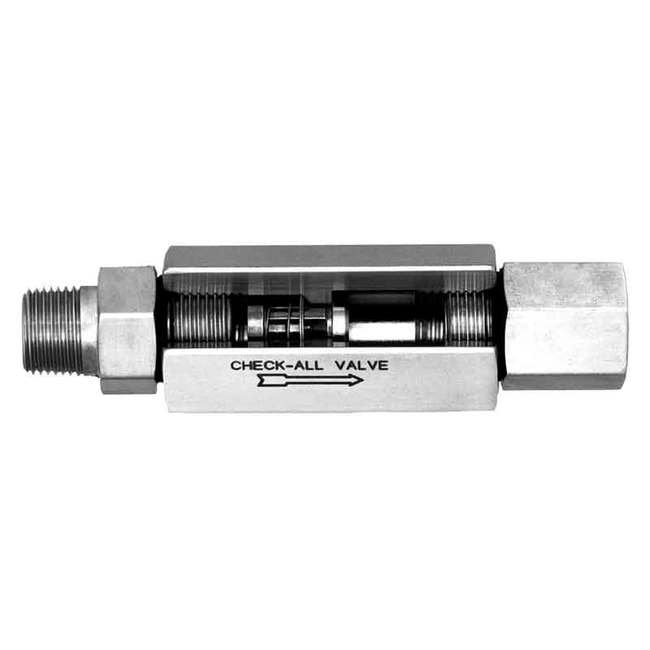

316 Stainless Steel Mini-Check Valve, 3/8" Size, 1.50 psi Cracking Pressure
316 Stainless Steel Mini-Check Valve, 3/8" Size, 1.50 psi Cracking Pressure
SKU:M1T-3d779c
Enhance control precision with the 316 Stainless Steel Mini-Check Valve. Versatile, reliable, and certified to ISO 9001 standards.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
316 Stainless Steel Mini-Check Valve, 3/8" Size, 1.50 psi Cracking Pressure
$34.99
Quantity: 1
Claim Your Seller Account
316 Stainless Steel Mini-Check Valve, 3/8" Size, 1.50 psi Cracking Pressure
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet your precision control requirements with the 316 Stainless Steel Mini-Check Valve featuring a 3/8" size and 1.50 psi standard cracking pressure. Engineered for minimal pressure drop, this versatile valve offers multiple end fitting options for seamless integration into various applications. With robust construction and a range of seat and spring materials available, this valve ensures reliable performance and can serve as a low-pressure relief valve or vacuum breaker. Certified to ISO 9001 standards, this valve delivers superior quality suitable for diverse industrial needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note
When ordering styles M5 through M8 be sure to specify whether compression (-C) or 37º flare (-F).Made in USA.Many valves in this series can be supplied with B16.34 certification. Consult the factory for more information.
Specifications Body Material
316 Stainless Steel = SS | Brass = BR | Carbon Steel = CS
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe And Tube Size
3/8 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
5000 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Note For Non Shock Pressure Rating At 100 Degree
Consult factory for P-T rating above 100 ºF.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
C
Specifications Special Options
C = Compression Tube (M5 - M8 only) | F = Flared Tube (M5 - M8 only) | O = Outer O-Ring Seals Same as Seat | T = FEP Encapsulated Spring
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
1.50 psi
Specifications Standard End Fitting O Ring Material
Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Polytetrafluoroethylene (PTFE) = TF

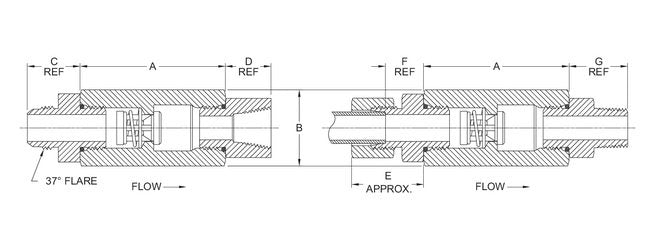

Specifications Valve Style
M8 - Tubing Inlet - Female Pipe Outlet
