316 Stainless Steel Multiport Needle Valve, 3/4" x 1/2" NPT Male x Female
316 Stainless Steel Multiport Needle Valve, 3/4" x 1/2" NPT Male x Female
SKU:NOS-227d3f
Premium 316 Stainless Steel Needle Valve for reliable, leak-free performance in industrial applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
316 Stainless Steel Multiport Needle Valve, 3/4" x 1/2" NPT Male x Female
$129.99
Quantity: 1
Claim Your Seller Account
316 Stainless Steel Multiport Needle Valve, 3/4" x 1/2" NPT Male x Female
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

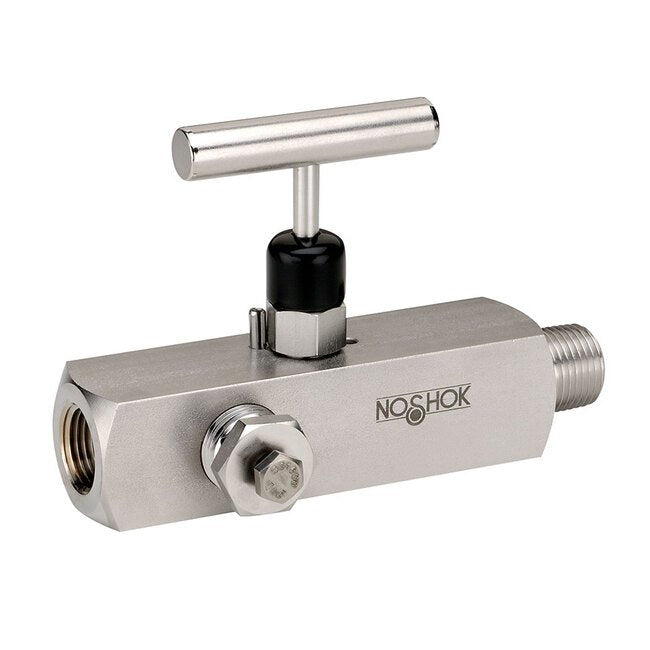

The 316 Stainless Steel Multiport Needle Valve, featuring a 0.187" Orifice Soft Seat and Polytetrafluoroethylene (PTFE) Packing, is the ideal solution for reducing leak paths in permanent piping installations. With a 6,000 psi pressure rating at 200°F, this valve ensures both performance and reliability. The optional bleed plugs allow for pressure release without disrupting the system. Helium leak tested for guaranteed quality, this valve is designed with durability and precision in mind.
Product Specifications
Additional Information Additional Information

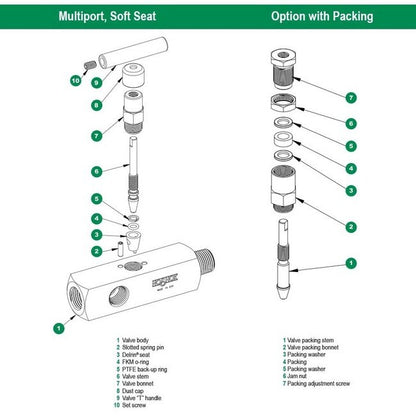

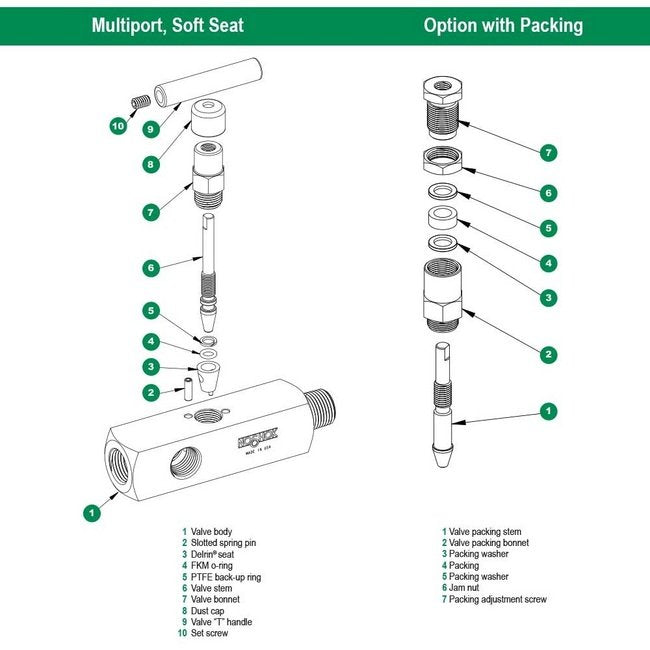

FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE packing optionalAll stem threads are rolled for strength and ease of operationOne-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threadsSlotted spring pin to prevent accidental looseningVinyl dust cap for bonnet and stem (non-packing)
Additional Options Additional Options
Soft SeatsPEEK (PK1)PCTFE (KF1)Stem TipsNon-rotating (316 stainless) (T1 )O-RingsEPDM (EM1)FFKM (Perfluoroelastomer 3018 or equivalent) (KZ1)NBR (NB1)Panel MountingsPanel mount (1 nut) (PM1)Panel mount (2 nuts) (PM2)Handles1-3/8" Phenolic (HL4)1-3/4" Phenolic (HL5 )
Note Note
Plugs and bleed plugs are available and can be ordered separately.Please note that the standard o-ring in all the NOSHOK valves is FKM and the standard handles are "T" handles (HL2).The handle material will always match the material of the valve, unless otherwise specified. For example, the "T" handle (HL2) on the 204-MFC will be steel. When only the standard configuration is needed, no additional designations are necessary. Please consult the factory for special application requestsAll NOSHOK valve products conform to the MSS SP-99 instrument valves standards, and valves supplied with packing also conform to MSS SP-132 compression packing systems for instrument valves standard.Other o-ring materials available on request.
Options And Accessories Assembly Options
NOSHOK offers multiple assembly options to meet your specific system requirements. Consult factory to discuss your customized solution.
Options And Accessories Bleed Valve

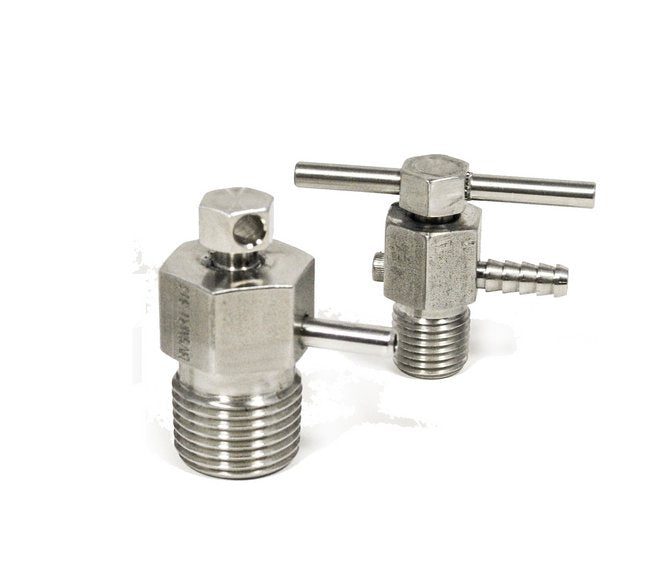

Bleed valves provide a convenient means to relieve process pressures trapped between a shut off valve and the instrument.
Options And Accessories Installed Options And Accessories
Soft SeatsPEEK (PK1)PCTFE (KF1)Packing PTFE (P1)Stem TipsNon-rotating (316 Stainless Steel) (T1)O-Rings (Other o-ring materials available on request)EPDM (EM1)FFKM (Perfluoroelastomer) 3018 or equivalent (KZ1)NBR (NB1)Panel Mount1 nut (PM1)2 nuts (PM2)Handles1-3/8" Phenolic Handle (HL4)1-3/4" Phenolic Handle (HL5)Cleaning For Oxygen Service (Stainless Steel Only)
Options And Accessories Uninstalled Options And Accessories
Plug, Steel (PG1-CS1-ZN1)Plug, Stainless Steel (PG1-SS1-EP)Bleed Plug, Steel, 1/2" NPT (BP1-C)Bleed Plug, Stainless Steel, 1/2" NPT (BP1-S)Bleed Plug, Stainless Steel, 1/4" NPT (BP2-S)
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

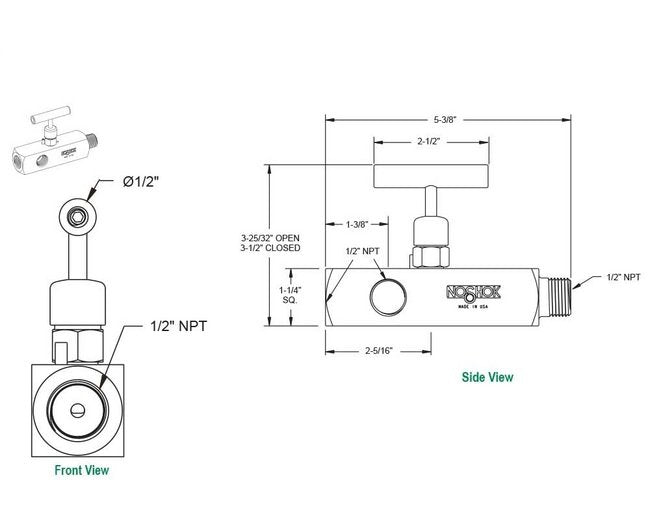

Specifications Connection Size
3/4 x 1/2 in
Specifications Connection Type
Male National Pipe Thread (MNPT) x Female National Pipe Thread (FNPT)
Specifications Cv Coefficient
0.64
Specifications Material
Electropolished 316 Stainless Steel
Specifications Orifice Size
0.187 in
Specifications Packings
Polytetrafluoroethylene (PTFE)
Specifications Pressure Ratings At 200 Degree Fahrenheit F Tempe
6,000 psi
Specifications Related Items
804-MS, 1/2" National Pipe Thread (NPT), Male, 316 Stainless Steel, Hard Seat 0.159" Bleed Port Valve | BP1-S, 1/2" National Pipe Thread (NPT) Stainless Steel Bleed Plug | PG1-SS1-EP, 1/2" National Pipe Thread (NPT) Stainless Steel Plug
Specifications Seat
Hard Seat
Specifications Series
300
Specifications Stem Seal And Type
All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) packing optional
Specifications Type
Needle Valve
Specifications Valve Material
Stainless Steel
Specifications Warranty
3 y
Specifications Weight
2.2 lb
