316 Stainless Steel NPT Compact Fittings
316 Stainless Steel NPT Compact Fittings
SKU:FIT-937184
Durable AISI-316 stainless steel compact fittings with UL, CSA, RoHS, and WEEE certifications for secure and compliant installations.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
316 Stainless Steel NPT Compact Fittings
$24.99
Quantity: 1
Claim Your Seller Account
316 Stainless Steel NPT Compact Fittings
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

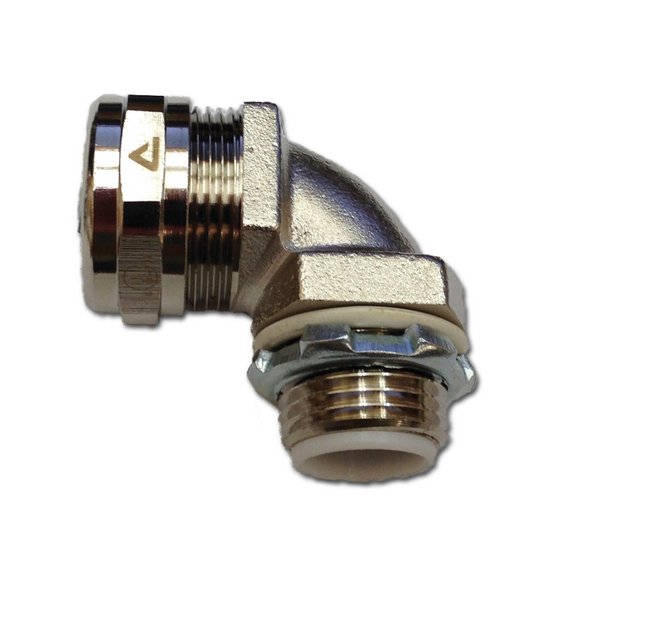

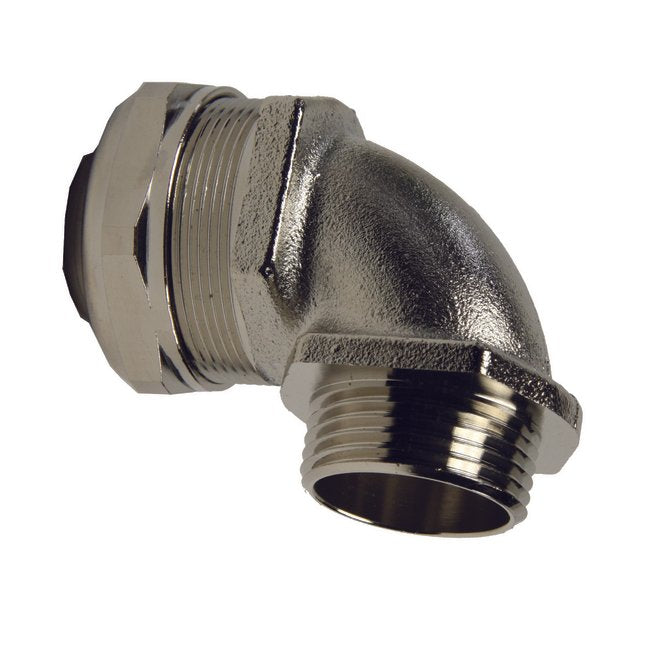

The AISI-316 Stainless Steel Compact Fittings NPT is a durable construction featuring four essential parts for secure connectivity: counter nut, clamping ring, ferrule, and body. This fitting comes complete with a sealing ring and stainless steel lock nut for easy installation in junction boxes. Certified by UL, CSA, RoHS, and WEEE, this fitting meets stringent quality and safety standards, making it ideal for both consumer and institutional applications.
Product Specifications
Specifications Connector Type
90°
Specifications Core Material
Stainless Steel

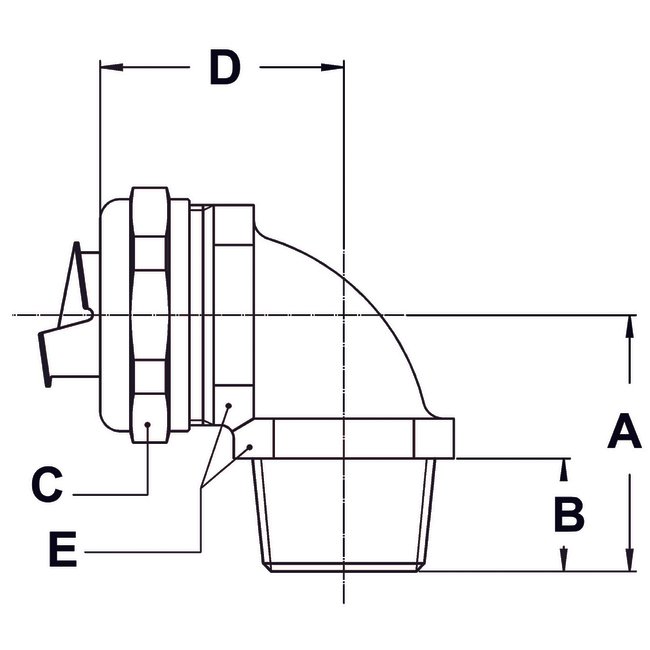

Specifications Dimension A
2.204 in
Specifications Dimension B
0.551 in
Specifications Dimension C
2.441 in
Specifications Dimension D
2.244 in
Specifications Dimension E
2.362 in
Specifications Electrical Trade Size
1-1/2 in
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Jacket Benefits
Liquid Tight
Specifications Thread Type
1-1/2"
Specifications Type
Compact 316 Stainless Steel
