316 Stainless Steel NPT Thermowell - 1/2"
316 Stainless Steel NPT Thermowell - 1/2"
SKU:NOS-3113c1
Durable 316 Stainless Steel NPT Thermowell for high-pressure applications. Easy removal/replacement without process shutdown. Ideal for corrosive environments.
Regular price
$65.99
Regular price
Sale price
$65.99
Unit price
per
Initiate Order
316 Stainless Steel NPT Thermowell - 1/2"
$65.99
Quantity: 1
Claim Your Seller Account
316 Stainless Steel NPT Thermowell - 1/2"
$65.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

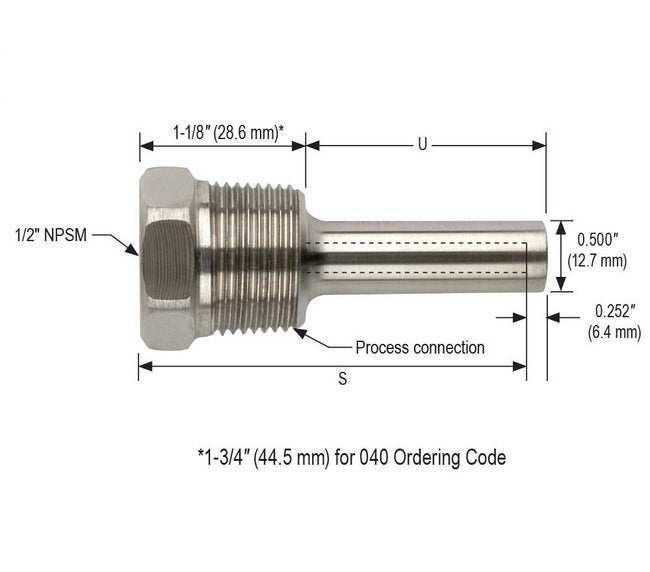

The 316 Stainless Steel NPT Thermowell features a 1/2" National Pipe Thread (NPT) Straight Shank with a 2-1/2" stem length. Designed for easy removal and replacement of temperature instruments without process shutdown, it offers protection, high pressure resistance (7,000 psi), and a 1-year warranty. Ideal for corrosive, abrasive, or high-velocity environments in HVAC, Petrochemical, Oil & Gas industries.
Product Specifications
Additional Information Additional Information
The Female thread will accept the 1/2" NPT Male thread without galling or seizingBrass, 304 Stainless Steel, or 316 Stainless Steel standard material options - other options availableStandard style is stepped, available in straight, tapered and lagging optionsMultiple lagging lengths available
Application Application
Recommended wherever the process being measured is under pressure, corrosive, abrasive, or moving at a high velocityHVACPetrochemicalOil and gasProcess (flanged thermowells)
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Note Note
Flange Connection not available.
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Specifications Bore Size
0.260 in | 6.35 mm
Specifications Insertion Diameter B Max
3/4 in | 19.05 mm
Specifications Instrument Connection Size
1/2 in
Specifications Instrument Connection Type
National Pipe Straight Mechanical (NPSM)
Specifications Material
316 Stainless Steel
Specifications Pressure Ratings At 70 Degree Fahrenheit F
7,000 psi
Specifications Process Connection Size
1/2 in
Specifications Process Connection Type
National Pipe Thread (NPT)
Specifications Shank Diameter Max
0.750 in | 19.05 mm
Specifications Stem Length
2-1/2 in
Specifications Stock
Yes
Specifications Style
Straight Shank
Specifications Type
Thermowell
Specifications Warranty
1 y
