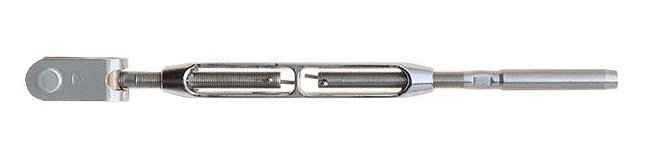

316 Stainless Steel Open Body Turnbuckles - Jaw & Machine Swage

Name: 316 Stainless Steel Open Body Turnbuckles - Jaw & Machine Swage
Brand: Lexco Cable Manufacturing
SKU: WIR-5b5dc8
Price: 39.99 USD
Availability: OutOfStock

SKU:WIR-5b5dc8

High-performance 316 Stainless Steel Turnbuckles with Jaw & Machine Swage for secure wire rope connections.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 316 Stainless Steel Open Body Turnbuckles with Jaw & Machine Swage are expertly designed for durability and high performance. Featuring a 'T' Toggle Construction on the Jaw for secure connections, these turnbuckles are equipped with bronze toggle nuts to prevent galling under heavy loads. With a Wire Rope Dia of 1/8", Approximate Breaking Strength of 2500 lbs, and a Working Load Limit (WLL) of 1,000 lbs, these turnbuckles provide reliable support for various applications. The adjustable design with a 3" thread size and a 4-5/3 body length ensures precise tensioning. This product is compliant with federal procurement standards and industry-specific certifications.

Product Specifications

Specifications Adjustment

Specifications Approximate Breaking Strength

2500 lbs

Specifications Body Length

4-5/3

Specifications Pin Diameter

1/4"

Specifications Thread Size

1/4 23

Specifications Type

Jaw/Swage

Specifications Weight

4 oz

Specifications Wire Rope Dia

1/8"

Specifications Wll

1,000 lbs

CAGE

0T9L4

NAICS

332510

PSC

4030

316 Stainless Steel Open Body Turnbuckles - Jaw & Machine Swage
