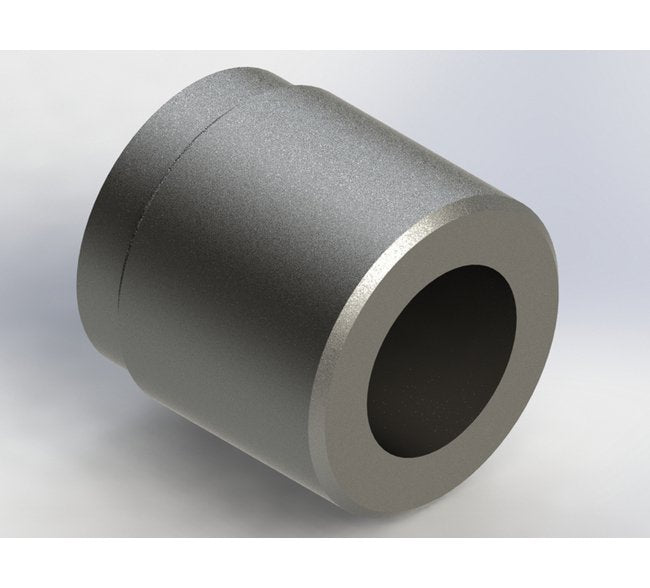

316 Stainless Steel Press-Fit Orifices 0.315" OD
316 Stainless Steel Press-Fit Orifices 0.315" OD
SKU:PRE-97a506
High-quality 316 SS press-fit orifices for precise flow control in air and water systems.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
316 Stainless Steel Press-Fit Orifices 0.315" OD
$49.99
Quantity: 1
Claim Your Seller Account
316 Stainless Steel Press-Fit Orifices 0.315" OD
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your precision flow control systems with our 316 stainless steel press-fit orifices. With an orifice diameter of 0.1200 inches, these inserts ensure accurate flow rates. Operating at a maximum pressure of 4000 psig, these orifices are designed for reliability and durability. Ideal for air and water flow applications, meet your stringent requirements with these precision metal components.
Product Specifications

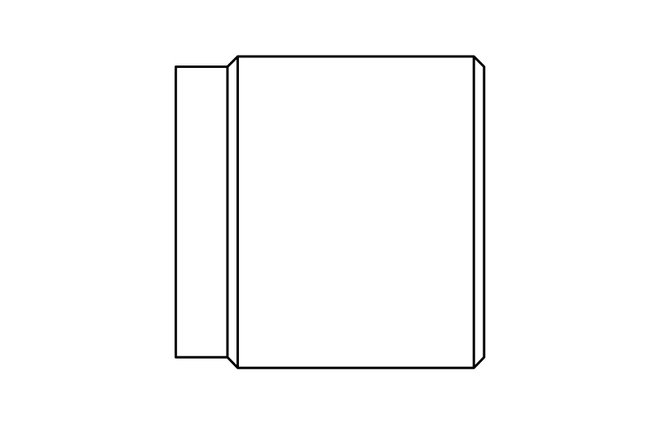

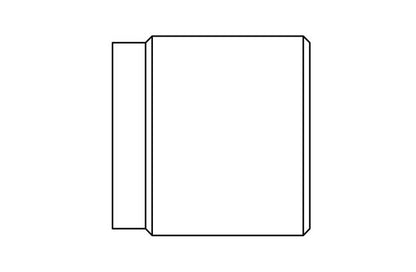

Dimensions Maximum Outside Diameter
0.3160 in
Dimensions Minimum Outside Diameter
0.3155 in

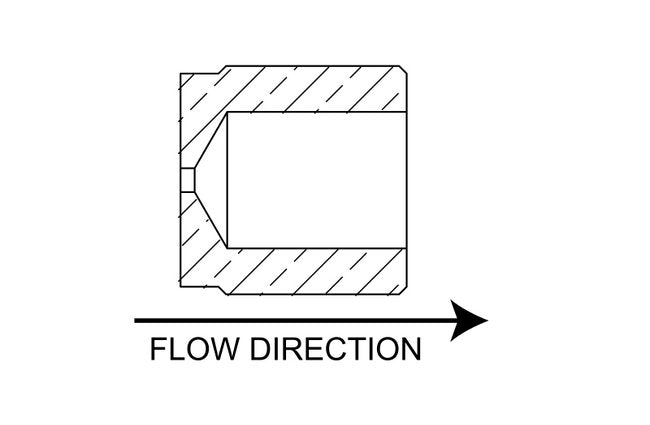

Dimensions Orifice Diameter
0.1200 in
Dimensions Press Fit Into Bore
0.3140 to 0.3150 in
Dimensions Total Length
0.313 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 101 | 5 psig: 216 | 10 psig: 286 | 15 psig: 345 | 20 psig: 403 | 25 psig: 464 | 30 psig: 525 | 40 psig: 648 | 50 psig: 771 | 60 psig: 894 | 70 psig: 1021 | 80 psig: 1146 | 90 psig: 1267 | 100 psig: 1403
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 47.8 | 5 psig (34.5 kPag): 102 | 10 psig (69.0 kPag): 135 | 15 psig (103.4 kPag): 163 | 20 psig (137.9 kPag): 190 | 25 psig (172.4 kPag): 219 | 30 psig (206.9 kPag): 248 | 40 psig (275.8 kPag): 306 | 50 psig (344.8 kPag): 364 | 60 psig (413.7 kPag): 422 | 70 psig (482.7 kPag): 482 | 80 psig (551.6 kPag): 541 | 90 psig (620.6 kPag): 598 | 100 psig (689.5 kPag): 662
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 180 | 20 In. Hg.: 180 | 30 In. Hg.: 180
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 84.9 | 20 In. Hg. (508 Mm. Hg.): 84.9 | 30 In. Hg. (762 Mm. Hg.): 84.9
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 138 | 10 In. Hg.: 173
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 65.3 | 10 In. Hg. (254 Mm. Hg.): 81.4
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.340 | 2 psig: 0.481 | 3 psig: 0.589 | 4 psig: 0.680 | 5 psig: 0.760 | 6 psig: 0.833 | 7 psig: 0.900 | 8 psig: 0.962 | 9 psig: 1.020 | 10 psig: 1.075 | 15 psig: 1.317 | 20 psig: 1.521 | 30 psig: 1.862 | 40 psig: 2.150 | 50 psig: 2.404 | 60 psig: 2.634 | 70 psig: 2.845 | 80 psig: 3.041 | 90 psig: 3.226 | 100 psig: 3.400
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 1.287 | 2 psig (13.8 kPag): 1.820 | 3 psig (20.7 kPag): 2.229 | 4 psig (27.6 kPag): 2.574 | 5 psig (34.5 kPag): 2.878 | 6 psig (41.4 kPag): 3.153 | 7 psig (48.3 kPag): 3.405 | 8 psig (55.2 kPag): 3.64 | 9 psig (62.1 kPag): 3.861 | 10 psig (69 kPag): 4.070 | 15 psig (103.4 kPag): 4.985 | 20 psig (137.9 kPag): 5.756 | 30 psig (206.9 kPag): 7.049 | 40 psig (275.8 kPag): 8.140 | 50 psig (344.8 kPag): 9.101 | 60 psig (413.7 kPag): 9.969 | 70 psig (482.7 kPag): 10.768 | 80 psig (551.6 kPag): 11.512 | 90 psig (620.6 kPag): 12.210 | 100 psig (689.5 kPag): 12.870
Specifications Connection A
.3155" Press-Fit Insert
Specifications Cv
0.340
Specifications Material
316 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
120
Specifications Screened
None
