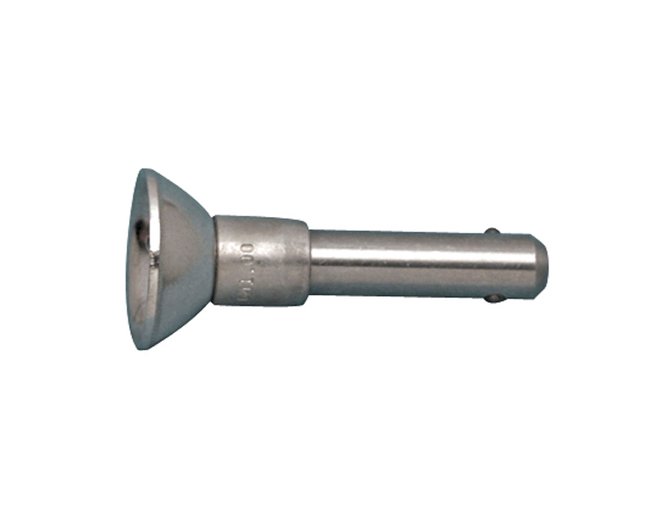

316 Stainless Steel Quick Lock Pin

316 Stainless Steel Quick Lock Pin

SKU:STA-481a63

Premium 316 Stainless Steel Quick Lock Pin for marine and industrial rigging applications. Offers exceptional corrosion resistance and a WLL of 4,600 lb.

Regular price $12.99
Regular price Sale price $12.99
Sale

Initiate Order

316 Stainless Steel Quick Lock Pin

316 Stainless Steel Quick Lock Pin

$12.99

Quantity: 1

Claim Your Seller Account

316 Stainless Steel Quick Lock Pin

316 Stainless Steel Quick Lock Pin

$12.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 316 Stainless Steel Quick Lock Pin offers a secure solution for marine and industrial rigging applications. Available in sizes from 3/16" to 3/8", this pin is precision-cast from grade 316 stainless steel, providing exceptional corrosion resistance and durability. With a Working Load Limit (WLL) of 4,600 lb, this Quick Lock Pin ensures a reliable and precise fit for various projects, meeting the highest standards of quality and performance in rigging applications.

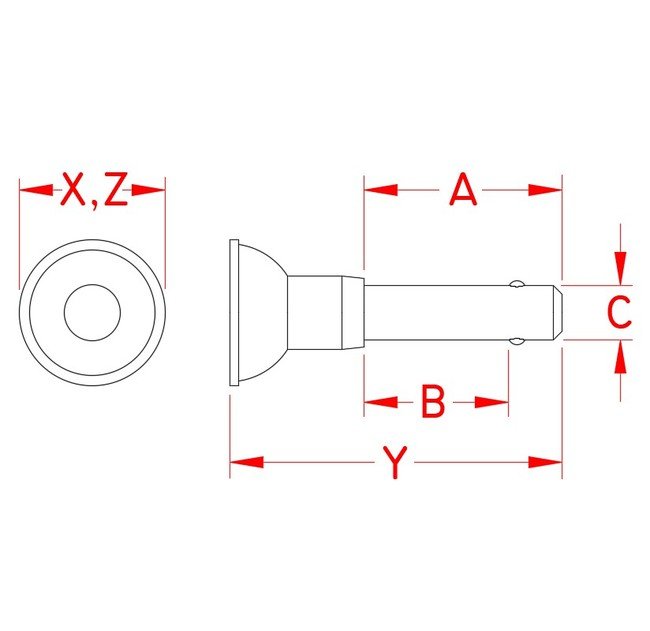

Product Specifications

Specifications Dimension A
0.75 in
Specifications Dimension B
0.50 in
Specifications Dimension C
1/4 in
Specifications Dimension X
0.75 in
Specifications Dimension Y
1.50 in
Specifications Dimension Z
0.75 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.04 lb
Specifications Working Load Limit Wll
4,600 lb
CAGE
1CXX6
NAICS
332722
PSC
5315
