316 Stainless Steel Quick Lock Pin

316 Stainless Steel Quick Lock Pin

SKU:STA-3bbe94

Premium 316 Stainless Steel Quick Lock Pin for marine and industrial rigging applications. Precision-cast for durability and corrosion resistance.

Regular price $12.99
Regular price Sale price $12.99
Sale

Initiate Order

316 Stainless Steel Quick Lock Pin

316 Stainless Steel Quick Lock Pin

$12.99

Quantity: 1

Claim Your Seller Account

316 Stainless Steel Quick Lock Pin

316 Stainless Steel Quick Lock Pin

$12.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

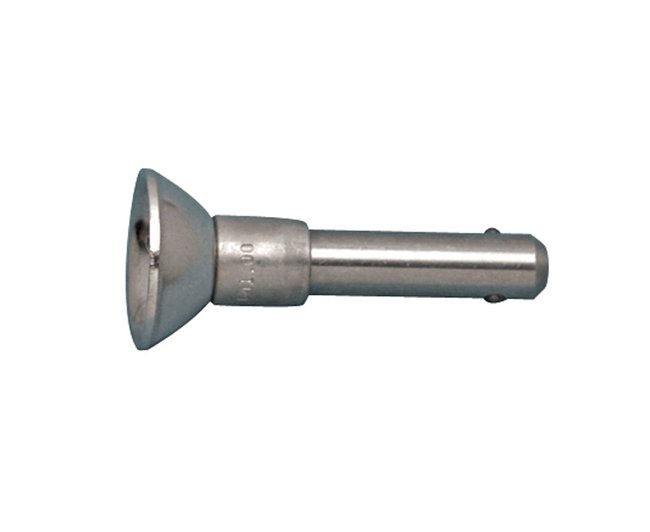

The 316 Stainless Steel Quick Lock Pin is precision cast from grade 316 stainless steel, ensuring superior corrosion resistance and durability. With sizes ranging from 3/16" to 3/8", and a working load limit of 7,200 lb, this pin is ideal for marine and industrial rigging applications where reliability is paramount. Made to meet stringent standards, this Quick Lock Pin from Suncor is your trusted solution for securing heavy loads in challenging environments.

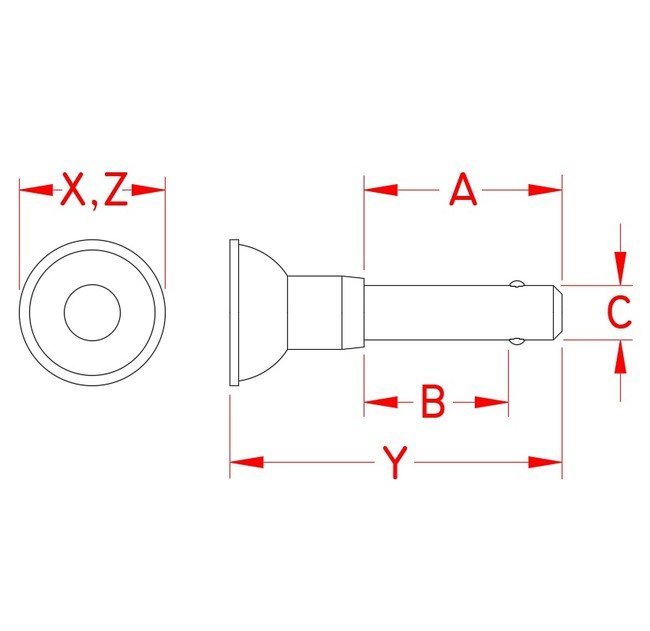

Product Specifications

Specifications Dimension A
1.25 in
Specifications Dimension B
1.00 in
Specifications Dimension C
5/16 in
Specifications Dimension X
0.75 in
Specifications Dimension Y
2.00 in
Specifications Dimension Z
0.75 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.06 lb
Specifications Working Load Limit Wll
7,200 lb
CAGE
1CXX6
NAICS
332722
PSC
5315
