316 Stainless Steel Quick Lock Pin
316 Stainless Steel Quick Lock Pin
SKU:STA-6ec90d
Durable 316 Stainless Steel Quick Lock Pin for marine and industrial rigging. Sizes 3/16" to 3/8". WLL 7,200 lb. Corrosion-resistant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
316 Stainless Steel Quick Lock Pin
$29.99
Quantity: 1
Claim Your Seller Account
316 Stainless Steel Quick Lock Pin
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

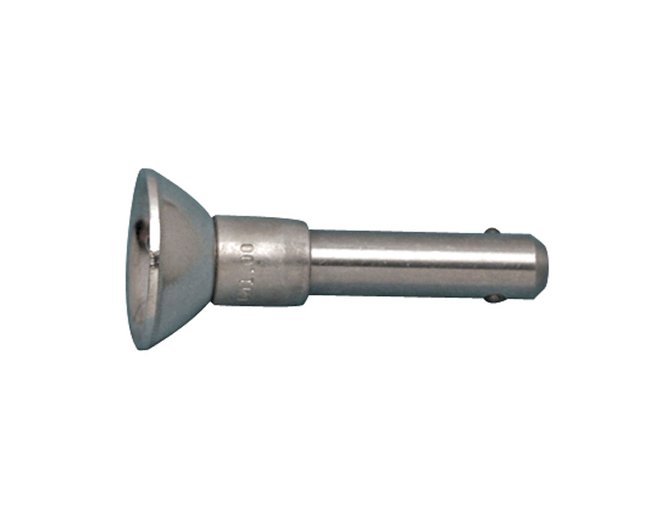

The 316 Stainless Steel Quick Lock Pin, available in sizes 3/16" to 3/8", is designed for marine and industrial rigging applications. Made from grade 316 stainless steel, this precision-cast pin ensures maximum corrosion resistance and durability. With a Working Load Limit (WLL) of 7,200 lb, it guarantees a secure fit for your projects, meeting stringent government procurement standards for reliability and performance.

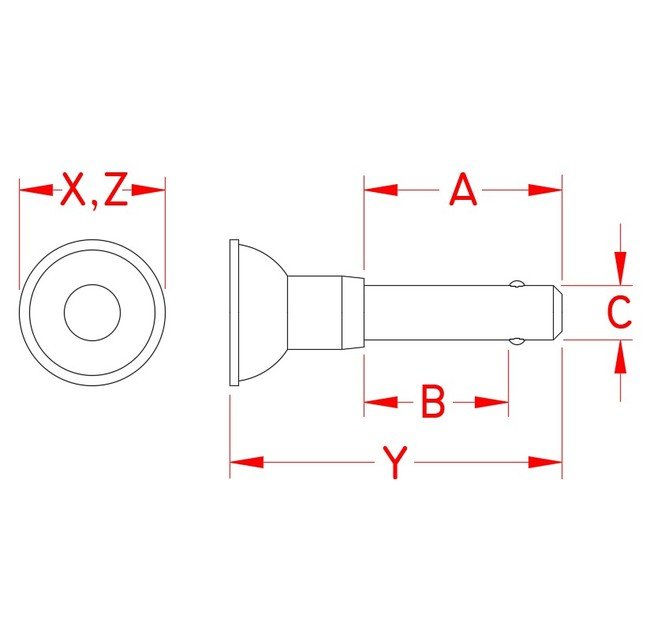

Product Specifications
Specifications Dimension A
2.75 in
Specifications Dimension B
2.50 in
Specifications Dimension C
5/16 in
Specifications Dimension X
0.75 in
Specifications Dimension Y
3.50 in
Specifications Dimension Z
0.75 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.12 lb
Specifications Working Load Limit Wll
7,200 lb
CAGE
1CXX6
NAICS
332722
PSC
5315
