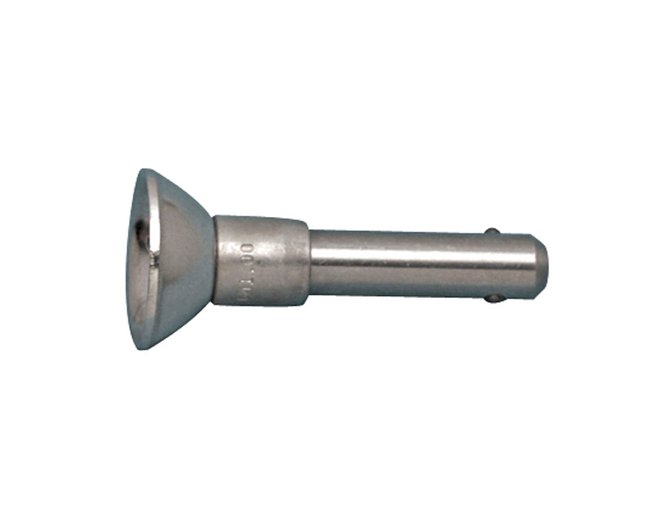

316 Stainless Steel Quick Lock Pin

Name: 316 Stainless Steel Quick Lock Pin
Brand: Suncor Stainless, Inc.
SKU: STA-762302
Price: 24.99 USD
Availability: OutOfStock

SKU:STA-762302

Durable 316 Stainless Steel Quick Lock Pin for marine and industrial rigging applications, ensuring secure connections with high corrosion resistance.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 316 Stainless Steel Quick Lock Pin, available in various sizes from 3/16" to 3/8", offers exceptional corrosion resistance and durability. Precision cast from grade 316 stainless steel, this pin is designed for marine and industrial rigging applications, ensuring secure and reliable connections. Ideal for projects requiring high working load limits, this Quick Lock Pin by Suncor is a premium choice for applications demanding top-tier performance.

Product Specifications

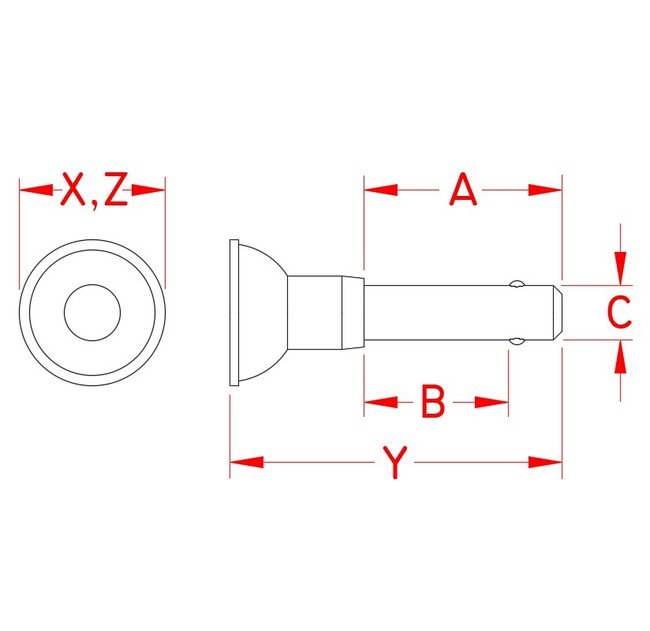

Specifications Dimension A

2.25 in

Specifications Dimension B

2.00 in

Specifications Dimension C

3/16 in

Specifications Dimension X

0.75 in

Specifications Dimension Y

3.00 in

Specifications Dimension Z

0.75 in

Specifications Fabrication Type

Precision Cast

Specifications Made In

Import

Specifications Material

316 Stainless Steel

Specifications Weight

0.04 lb

Specifications Working Load Limit Wll

2,575 lb

CAGE

1CXX6

NAICS

332722

PSC

5315
