316 Stainless Steel Remote Mounting Instrumentation Manifold Valve
316 Stainless Steel Remote Mounting Instrumentation Manifold Valve
SKU:SM3-3aace8
Reliable 316 Stainless Steel Manifold Valve for precise industrial control.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
316 Stainless Steel Remote Mounting Instrumentation Manifold Valve
$249.99
Quantity: 1
Claim Your Seller Account
316 Stainless Steel Remote Mounting Instrumentation Manifold Valve
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SM3V Series Remote Mounting Horizontal Style Instrumentation Manifold Valve is ideal for industrial applications requiring precision control and durability. With a pressure rating of 6000 psig, 316 stainless steel construction, and factory testing for leak rate compliance, this valve ensures reliable performance under high temperatures and pressure conditions. Each valve features PTFE packing for enhanced sealing and longevity, meeting stringent industry standards for quality and safety.
Product Specifications
Features Features

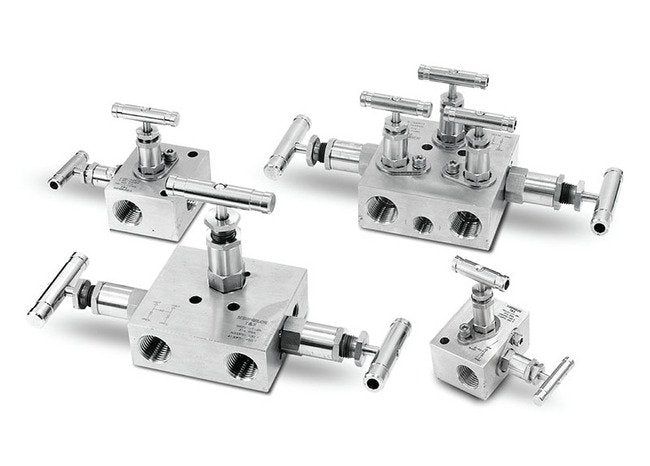

2-,3-,and 5-valves Instrument manifolds valves.All 316 stainless steel construction with PTFE packingEach valve of every manifold is factory tested with nitrogen gas to a maximum allowable leak rate of 0.1scc/min.
Note Note

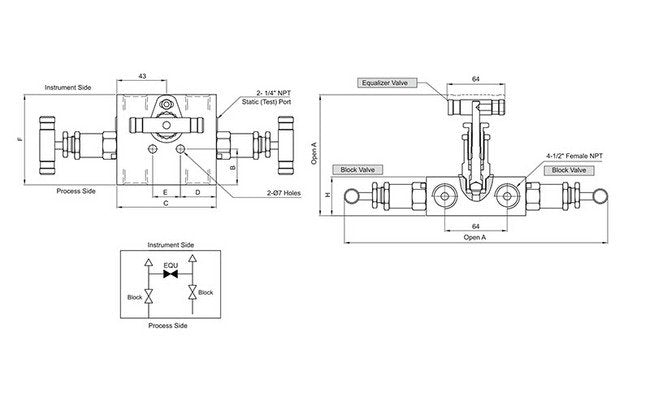

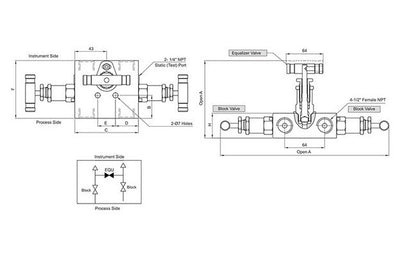

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Instrument End Connections
1/2 in. Female National Pipe Thread (FNPT)
Technical Specs Maximum Allowable Leak Rate
0.1 cm³/min
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
6000 psig | 413 bar
Technical Specs Process End Connections
1/2 in. Female National Pipe Thread (FNPT)
Technical Specs Temperature With Optional Grafoil Packing
1200 ºF | 648 ºC
Weight Dimension Dimension A
228.0 mm
Weight Dimension Dimension B
31.0 mm
Weight Dimension Dimension C
86.0 mm
Weight Dimension Dimension D
31.0 mm
Weight Dimension Dimension E
24.0 mm
Weight Dimension Dimension F
78.0 mm
Weight Dimension Dimension G
106.0 mm
Weight Dimension Dimension H
33.5 mm
