316 Stainless Steel Rope Sheave with Bronze Bushing

316 Stainless Steel Rope Sheave with Bronze Bushing

SKU:STA-076c9d

Premium 316 Stainless Steel Rope Sheave with Bronze Bushing for marine and industrial rigging, ensuring corrosion resistance and durability.

Regular price $59.99
Regular price Sale price $59.99
Sale

Initiate Order

316 Stainless Steel Rope Sheave with Bronze Bushing

316 Stainless Steel Rope Sheave with Bronze Bushing

$59.99

Quantity: 1

Claim Your Seller Account

316 Stainless Steel Rope Sheave with Bronze Bushing

316 Stainless Steel Rope Sheave with Bronze Bushing

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

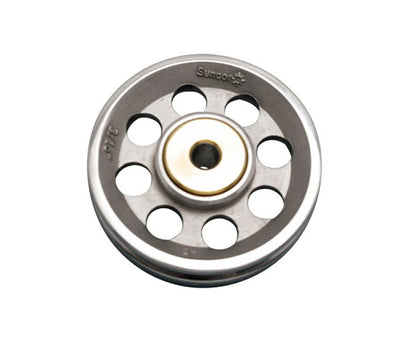

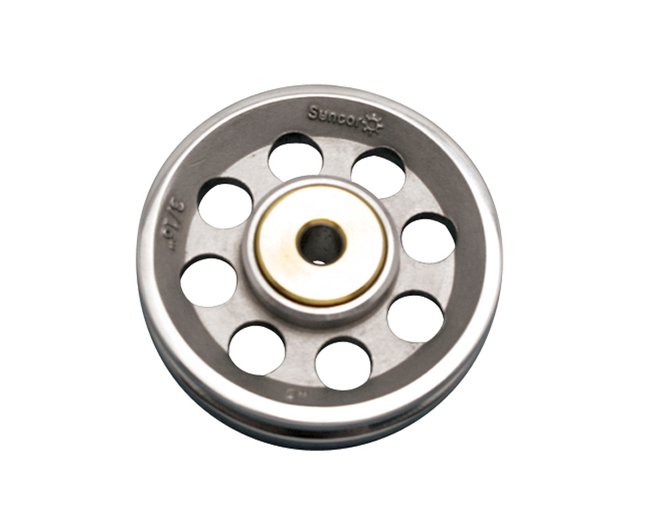

The 316 Stainless Steel Rope Sheave with Bronze Bushing is a premium-grade sheave designed for marine and industrial rigging applications. Made from grade 316 stainless steel, this sheave offers exceptional corrosion resistance and durability, ensuring reliable performance in harsh environments. Its precision-cast construction and bronze bushing accommodate rope sizes from 1/4" to 1", providing a perfect fit for various projects. With a Working Load Limit (WLL) of 1500 lb, this sheave by Suncor is both robust and versatile, making it an ideal choice for demanding rigging tasks.

Product Specifications

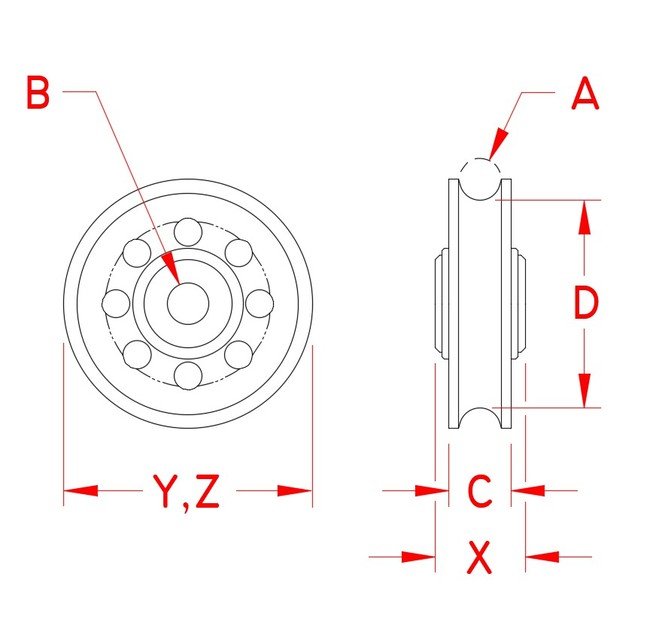

Specifications Dimension A
1/2 in
Specifications Dimension B
1/2 in
Specifications Dimension C
2.75 in
Specifications Dimension D
0.94 in
Specifications Dimension X
0.94 in
Specifications Dimension Y
3.25 in
Specifications Dimension Z
3.25 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Suncor Patent
Yes
Specifications Weight
0.84 lb
Specifications Working Load Limit Wll
1500 lb
CAGE
1CXX6
NAICS
333923
PSC
3020
