316 Stainless Steel Round Pin Anchor Shackle - Suncor

316 Stainless Steel Round Pin Anchor Shackle - Suncor

SKU:STA-a0f089

Get superior strength in marine applications with Suncor's 316 Stainless Steel Round Pin Anchor Shackle.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

316 Stainless Steel Round Pin Anchor Shackle - Suncor

316 Stainless Steel Round Pin Anchor Shackle - Suncor

$29.99

Quantity: 1

Claim Your Seller Account

316 Stainless Steel Round Pin Anchor Shackle - Suncor

316 Stainless Steel Round Pin Anchor Shackle - Suncor

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

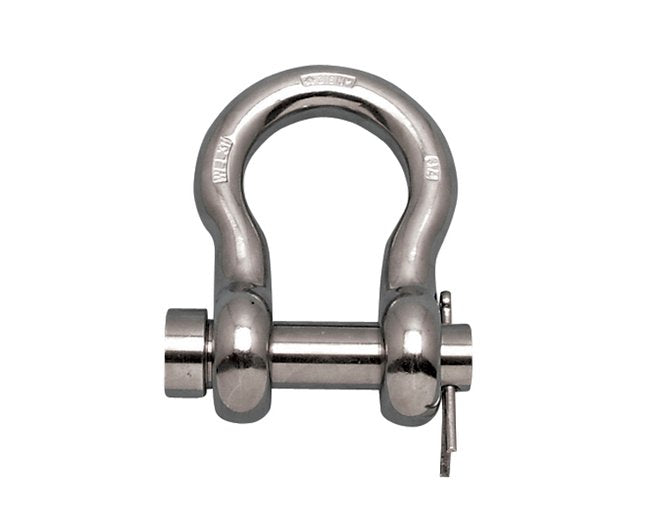

The 316 Stainless Steel Round Pin Anchor Shackle by Suncor is designed for superior strength and durability in saltwater environments. This shackle, with a 2000 lb working load limit, is perfect for securing anchors to chains or anchor swivels. Manufactured to exceed Fed Spec RR-C-271 Type IVA Class 1 standards, this Suncor exclusive product ensures reliable performance in marine applications. Made from drop forged 316-NM stainless steel, this round pin shackle is corrosion-resistant and built to last.

Product Specifications

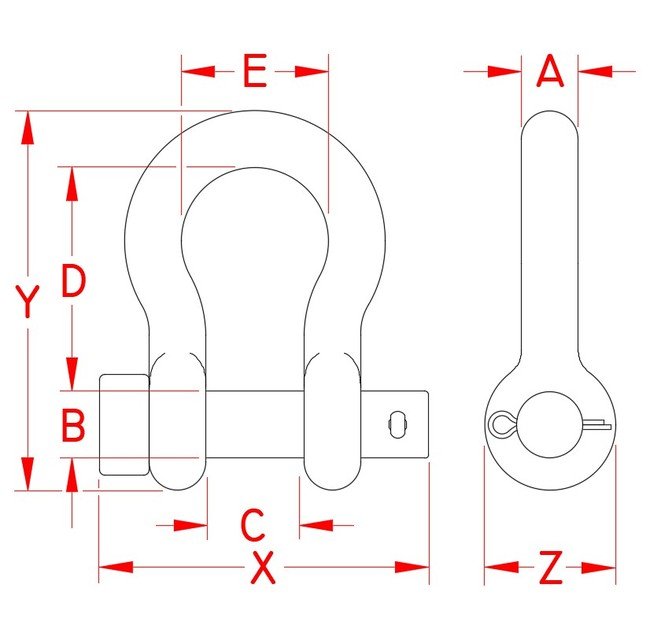

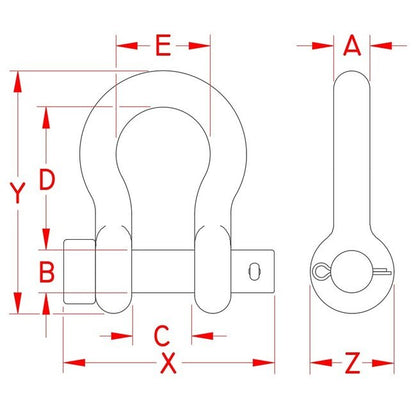

Specifications Dimension A
7/16 in
Specifications Dimension B
0.50 in
Specifications Dimension C
0.72 in
Specifications Dimension D
1.77 in
Specifications Dimension E
1.10 in
Specifications Dimension X
2.42 in
Specifications Dimension Y
2.91 in
Specifications Dimension Z
1.01 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
Class 1 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
0.44 lb
Specifications Working Load Limit Wll
2000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
