316 Stainless Steel Round Pin Chain Shackle - Suncor

316 Stainless Steel Round Pin Chain Shackle - Suncor

SKU:STA-292b45

Premium 316 Stainless Steel Round Pin Chain Shackle for industrial & marine use, with 10,000 lb WLL & Fed Spec RR-C-271 compliance.

Regular price $69.99
Regular price Sale price $69.99
Sale

Initiate Order

316 Stainless Steel Round Pin Chain Shackle - Suncor

316 Stainless Steel Round Pin Chain Shackle - Suncor

$69.99

Quantity: 1

Claim Your Seller Account

316 Stainless Steel Round Pin Chain Shackle - Suncor

316 Stainless Steel Round Pin Chain Shackle - Suncor

$69.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

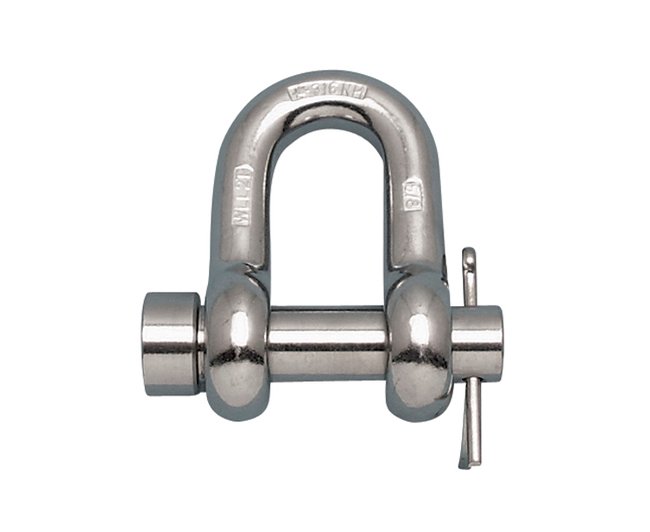

The 316 Stainless Steel Round Pin Chain Shackle by Suncor is engineered for robust industrial and marine applications, boasting a high corrosion resistance grade. This drop-forged shackle features an oversized round pin to ensure secure connections and has a substantial working load limit of 10,000 lb. Compliant with Fed Spec RR-C-271, MIL-DTL-32655, Type IVB, Class 1, this Suncor exclusive shackle is designed to meet the stringent demands of government and institutional procurements.

Product Specifications

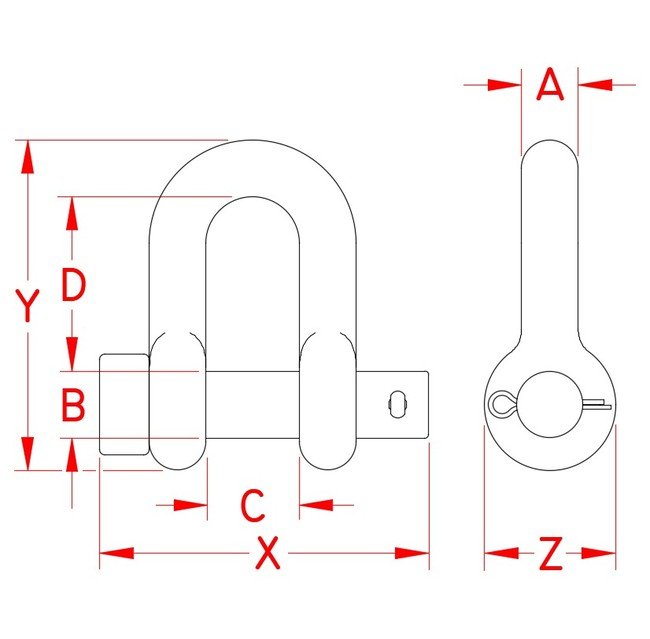

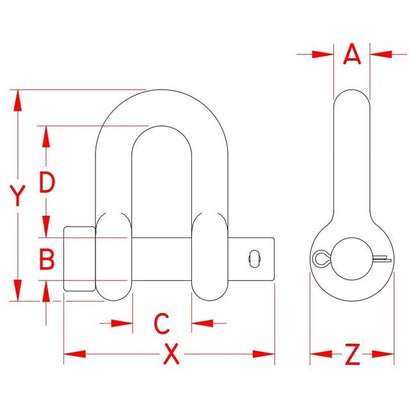

Specifications Dimension A
1 in
Specifications Dimension B
1.13 in
Specifications Dimension C
1.67 in
Specifications Dimension D
3.20 in
Specifications Dimension X
4.98 in
Specifications Dimension Y
5.87 in
Specifications Dimension Z
2.15 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
Class 1 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVB
Specifications Suncor Exclusive
Yes
Specifications Weight
4.41 lb
Specifications Working Load Limit Wll
10,000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
