316 Stainless Steel Rupture Disc Units
316 Stainless Steel Rupture Disc Units
SKU:ACC-7b488e
Safeguard sample cylinders with 316 Stainless Steel Rupture Disc Units. Ensure precision protection & durability in high-pressure environments.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
316 Stainless Steel Rupture Disc Units
$39.99
Quantity: 1
Claim Your Seller Account
316 Stainless Steel Rupture Disc Units
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

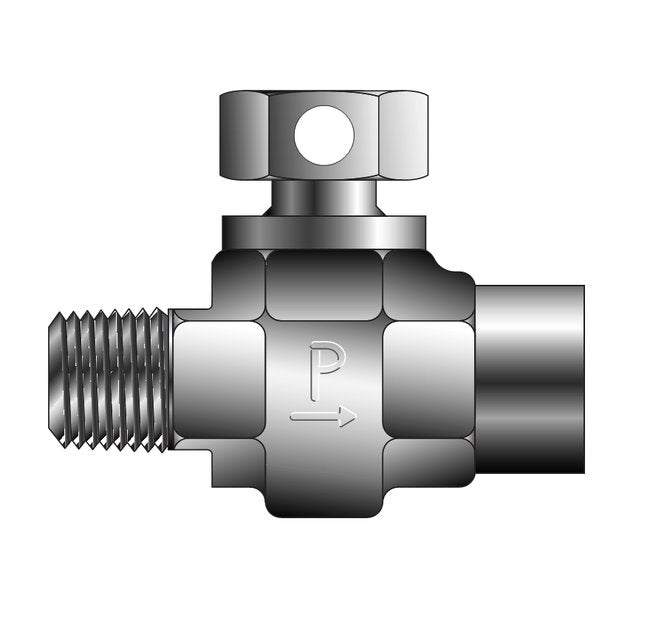

The 316 Stainless Steel Rupture Disc Units from the RV6L Series are expertly engineered to safeguard stainless steel sample cylinders against overpressure. Featuring a pre-bulged design, these rupture discs ensure minimal fragmentation upon bursting, maintaining precise burst pressure tolerances. Ideal for critical applications requiring reliable protection and durability, these units offer peace of mind in high-pressure environments.

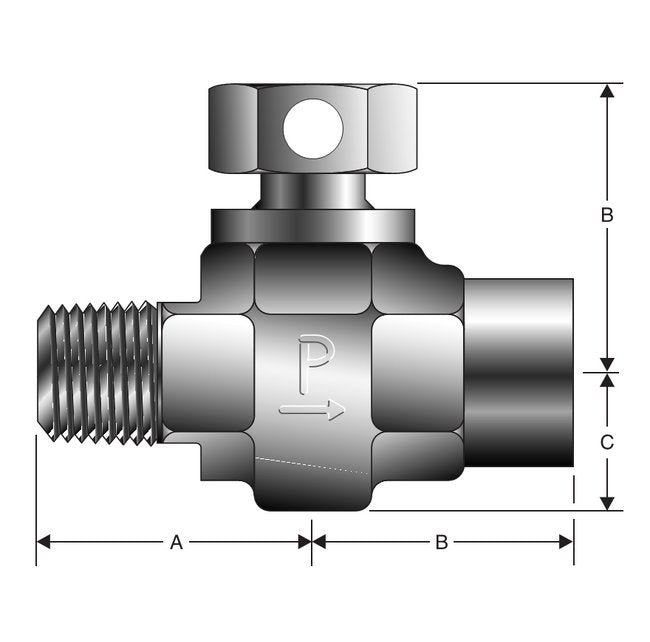

Product Specifications
Dimensions A
1.38 in
Dimensions B
1.38 in
Dimensions C
.61 in
Dimensions D
1.31 in
Dimensions Inlet
1/2" Male NPT
Dimensions Outlet
1/2" Female NPT
Specifications Features
Designed for direct engagement to stainless steel sample cylinders for protection against overpressure. Pre-bulged 316 stainless steel rupture disc minimizes fragmentation upon burst. Pre-bulged disk provides close tolerance of the actual burst pressure.
