316 Stainless Steel Shoulder Ring Bolt - 3/4"
316 Stainless Steel Shoulder Ring Bolt - 3/4"
SKU:STA-f25e2d
Durable 3/4" 316 Stainless Steel Shoulder Ring Bolt with 2,600 lb WLL, ideal for marine and industrial use. Corrosion-resistant and precise for reliable performance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

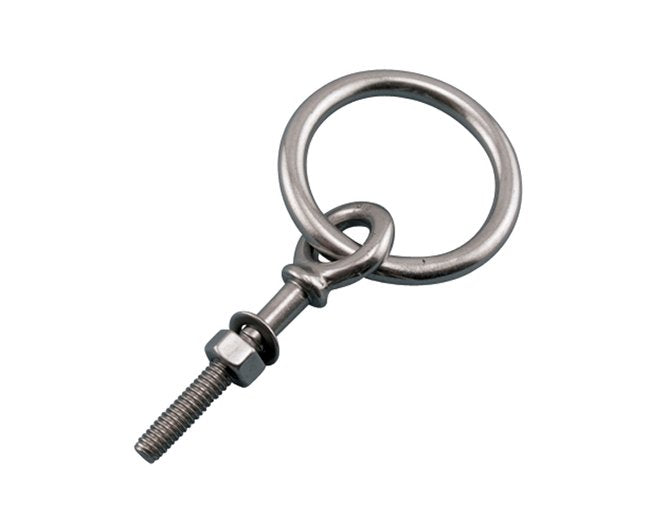

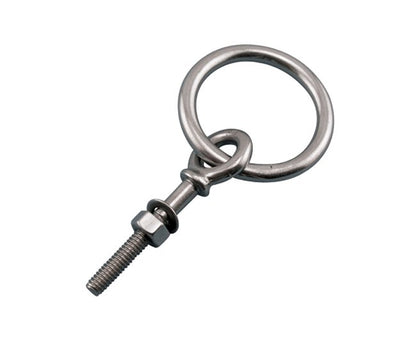

The 316 Stainless Steel Shoulder Ring Bolt, complete with nut and washer, features UNC threads and a 2,600 lb Working Load Limit. Precision-crafted from grade 316 stainless steel, this corrosion-resistant bolt is ideal for marine and industrial applications. With dimensions tailored for diverse projects and a robust design fabricated through drop forging and wire forming, this bolt ensures durability and reliability in demanding environments.

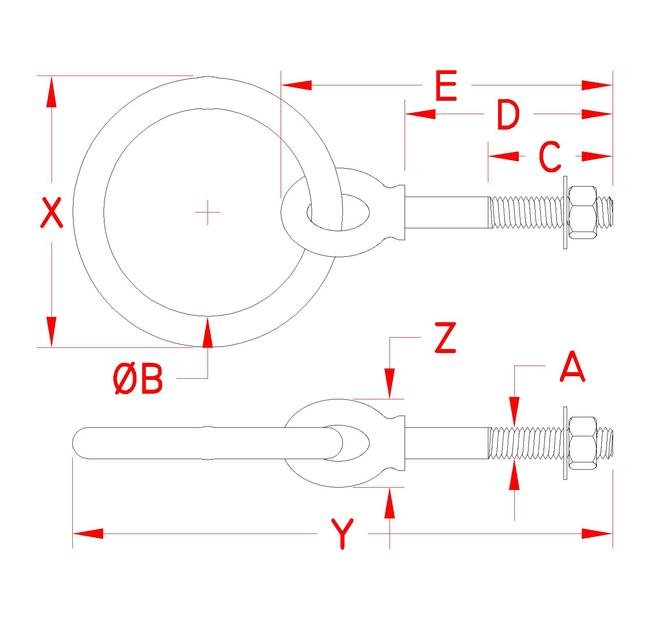

Product Specifications
Specifications Dimension A
3/4 in
Specifications Dimension B
3.00 in
Specifications Dimension C
3.00 in
Specifications Dimension D
6.00 in
Specifications Dimension E
8.87 in
Specifications Dimension X
4.50 in
Specifications Dimension Y
11.60 in
Specifications Dimension Z
1.82 in
Specifications Fabrication Type
Drop Forged | Wire Formed
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
2.89 lb
Specifications Working Load Limit Wll
2,600 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
