316 Stainless Steel Shoulder Ring Bolt with Nut and Washer

316 Stainless Steel Shoulder Ring Bolt with Nut and Washer

SKU:STA-7b3af2

Enhance marine and industrial projects with the durable 316 Stainless Steel Shoulder Ring Bolt. UNC threaded with nut and washer, sizes from 1/4" to 3/4".

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

316 Stainless Steel Shoulder Ring Bolt with Nut and Washer

316 Stainless Steel Shoulder Ring Bolt with Nut and Washer

$24.99

Quantity: 1

Claim Your Seller Account

316 Stainless Steel Shoulder Ring Bolt with Nut and Washer

316 Stainless Steel Shoulder Ring Bolt with Nut and Washer

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

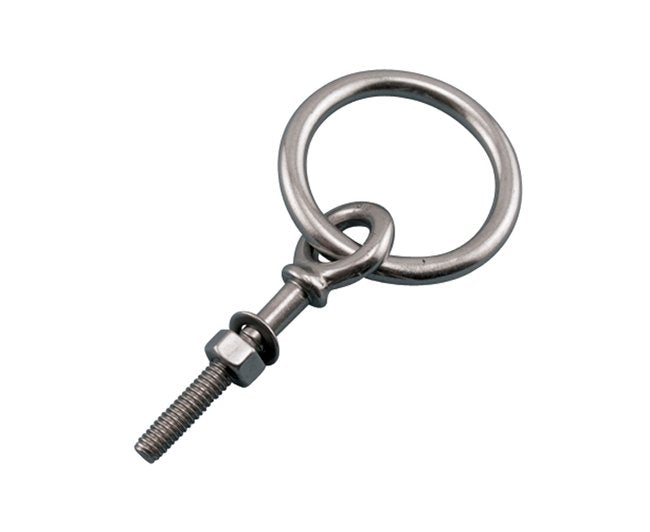

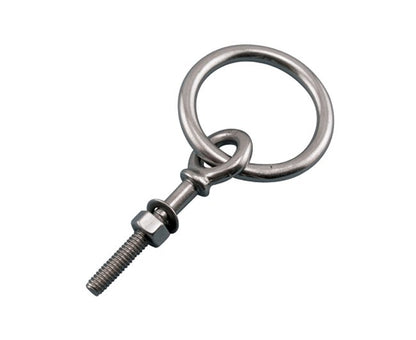

Upgrade your marine and industrial projects with the Suncor 316 Stainless Steel Shoulder Ring Bolt. This UNC threaded bolt includes a nut and washer, ensuring a secure fit for various applications. With dimensions of 1/2" (A) x 3.00" (B) x 6.00" (D), and a Working Load Limit (WLL) of 1,100 lb, this bolt is both durable and reliable. Crafted from grade 316 stainless steel, it offers exceptional corrosion resistance. Trust in its drop forged and wire formed construction for longevity in harsh environments. Available sizes range from 1/4" to 3/4" to accommodate diverse project needs.

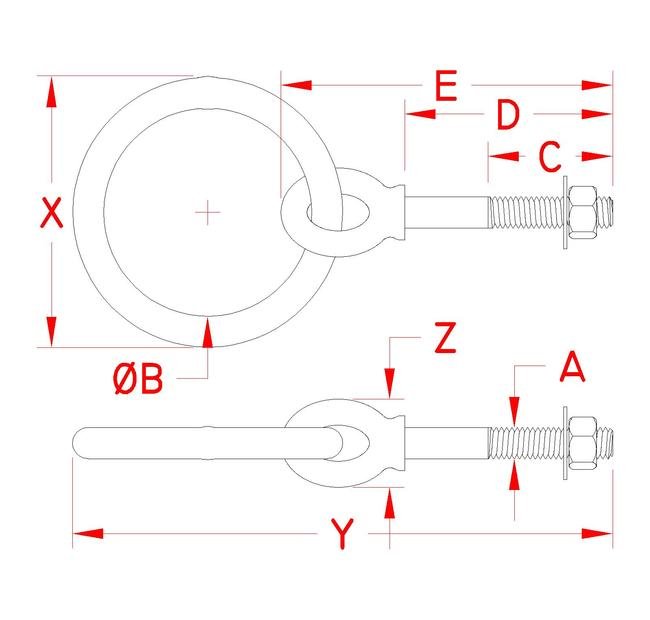

Product Specifications

Specifications Dimension A
1/2 in
Specifications Dimension B
3.00 in
Specifications Dimension C
3.00 in
Specifications Dimension D
6.00 in
Specifications Dimension E
7.75 in
Specifications Dimension X
4.00 in
Specifications Dimension Y
10.75 in
Specifications Dimension Z
1.15 in
Specifications Fabrication Type
Drop Forged | Wire Formed
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
1.17 lb
Specifications Working Load Limit Wll
1,100 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
