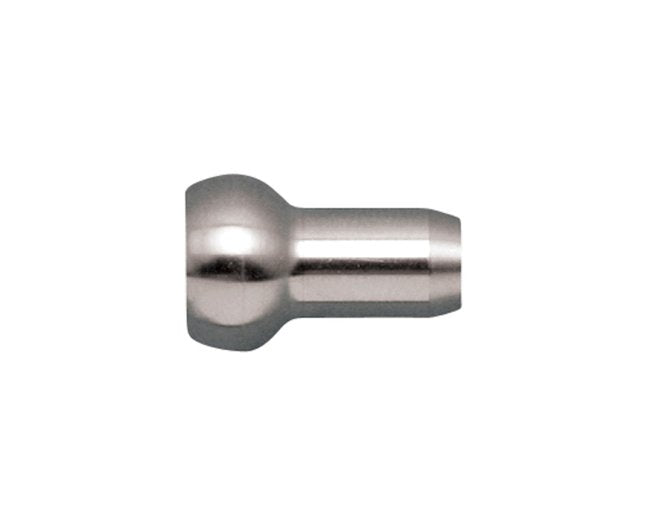

316 Stainless Steel Single Shank Ball Sleeve
316 Stainless Steel Single Shank Ball Sleeve
SKU:STA-a9e3f8
Upgrade your wire rope projects with the 316 Stainless Steel Single Shank Ball Sleeve. Maximum corrosion resistance and reliable performance guaranteed!
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


Enhance your industrial wire rope assemblies with precision using the 316 Stainless Steel Single Shank Ball Sleeve. This durable sleeve is designed to accommodate wire sizes ranging from 1/16" to 5/16". Crafted from grade 316 stainless steel, it offers superior corrosion resistance, making it ideal for projects of any scale. The precision machined construction ensures reliable performance, meeting the stringent requirements of industrial applications.
Product Specifications

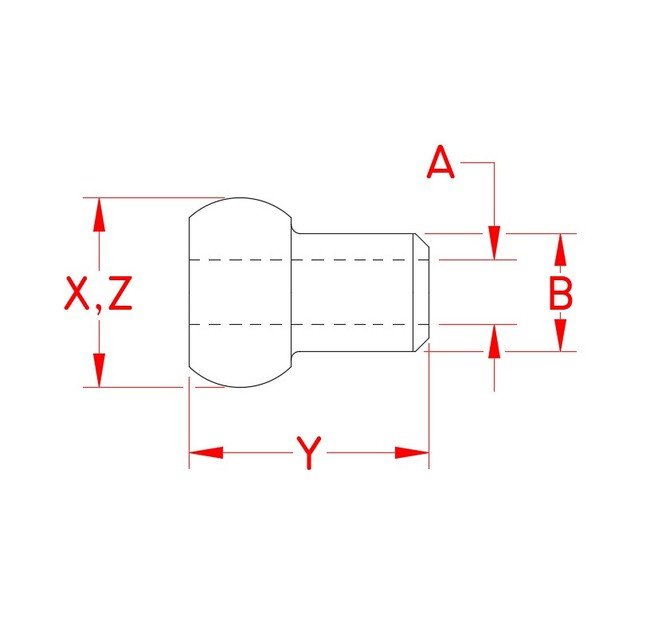

Specifications After Swage
0.26 in
Specifications Before Swage
0.30 in
Specifications Dimension A
3/16 in
Specifications Dimension X
0.49 in
Specifications Dimension Y
0.73 in
Specifications Dimension Z
0.49 in
Specifications Fabrication Type
Precision Machined
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.01 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
