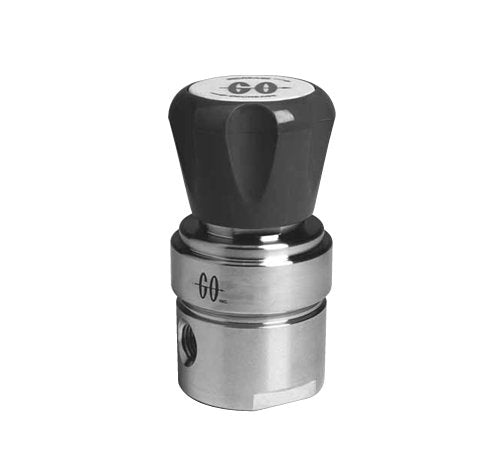

316 Stainless Steel Single Stage Pressure Regulator - PR-1

Name: 316 Stainless Steel Single Stage Pressure Regulator - PR-1
Brand: Del Val Controls, Inc
SKU: GOP-64c72b
Price: 249.99 USD
Availability: OutOfStock

SKU:GOP-64c72b

Precision-engineered 316 Stainless Steel Single Stage Regulator for precise pressure control in diverse applications.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PR-1 Single Stage Regulator is a versatile and durable pressure reducing regulator suitable for instrumentation sample systems and semiconductor processing gases. Constructed with 316L Stainless Steel and featuring options for different seat materials and control ranges, this regulator offers precise pressure control with inlet pressures up to 6000 psig. With a flow coefficient (Cv) of 0.06, stainless steel caps, and adjustable outlet pressure ranges, it ensures reliable performance in gas or liquid services. The PR-1 meets strict industry standards for quality and durability.

Product Specifications

Features And Specifications Features And Specifications

316L stainless steel, INCONELÂ®, PTFE, and TefzelÂ® (or optional main seat material choice) only in flow streamStainless steel cap with SS adjusting screwInlet pressures of up to 6000 psiAdjustable outlet pressure ranges of 0-10, 0-25, 0-50, 0-100, 0-250, 0-500, and 0-750 psigOperating temperatures of -40 Â°F up to +500 Â°F (-40 Â°C up to +260 Â°C)Bubble-tight shutoff under most conditionsCv flow coefficients 0.025, 0.06, 0.20, and 0.50 (0.06 Standard)

Options Options

Wetted materials of construction: MONELÂ®, HASTELLOYÂ®, Titanium and 6MOPanel mount (13/8" mounting hole)Special diaphragm assembly for water serviceSS inlet pressure gaugesSS outlet pressure gaugesBase-mounting bracketsCaptured ventSelf-relieving

Specifications Body Material

316L Stainless Steel, Stainless Steel Diaphragm

Specifications Cap Assembly

Standard, Stainless Steel

Specifications Diaphragm Backing Material

Polytetrafluoroethylene (PTFE)

Specifications Diaphragm Facing Material

Metal Backing, Standard

Specifications Diaphragm Type

Liquid Service

Specifications Flow Coefficient Cv

0.06, Standard

Specifications Gauge Port Size

1/4 in

Specifications Gauge Port Types

Female National Pipe Tapered (FNPT) Gauge Port, Standard

Specifications Inlet Filter

20 Âµm

Specifications Outlet Range

0 to 25 psig

Specifications Port Configuration

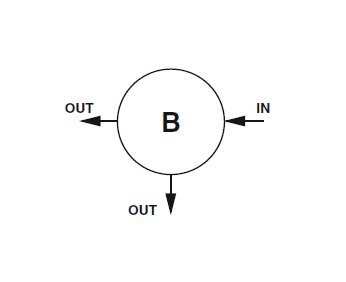

B - See Diagram for Port Configuration

Specifications Process Port Size

1/4 in

Specifications Process Port Types

Female National Pipe Tapered (FNPT)

Specifications Seat Material

Polyetheretherketone (PEEK) Low Temp Service, Plastic Knob

Specifications Surface Finish Of Diaphragm Cavity

< 25 Ra | Standard

Specifications Type Of Service

Gas or Liquid

Specifications Weight

1.9 lb | 0.86 kg
