Versatile 316 Stainless Steel Single Stage Pressure Regulator with precise control for instrumentation and semiconductor applications.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

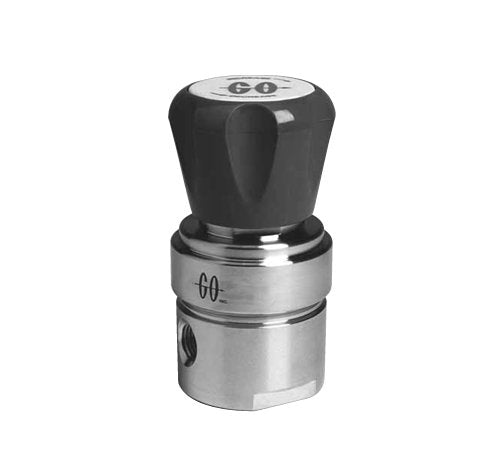

The PR-1 Series 316 Stainless Steel Single Stage Pressure Regulator is designed for precision pressure control in instrumentation sample systems and semiconductor processing gases. With features like stainless steel caps, adjustable outlet pressure ranges, and a wide spectrum of capabilities, this regulator is ideal for controlling pressures at low to moderate flows in gas or liquid service. Its durable construction, various seat materials, and Inconel diaphragms ensure reliable performance with inlet pressures up to 6000 psig and operating temperatures up to 500°F.

Product Specifications

Features And Specifications Features And Specifications

316L stainless steel, INCONELÂ®, PTFE, and TefzelÂ® (or optional main seat material choice) only in flow streamStainless steel cap with SS adjusting screwInlet pressures of up to 6000 psiAdjustable outlet pressure ranges of 0-10, 0-25, 0-50, 0-100, 0-250, 0-500, and 0-750 psigOperating temperatures of -40 Â°F up to +500 Â°F (-40 Â°C up to +260 Â°C)Bubble-tight shutoff under most conditionsCv flow coefficients 0.025, 0.06, 0.20, and 0.50 (0.06 Standard)

Options Options

Wetted materials of construction: MONELÂ®, HASTELLOYÂ®, Titanium and 6MOPanel mount (13/8" mounting hole)Special diaphragm assembly for water serviceSS inlet pressure gaugesSS outlet pressure gaugesBase-mounting bracketsCaptured ventSelf-relievingPressure test certificate

Specifications Body Material

316L Stainless Steel, Stainless Steel Diaphragm

Specifications Cap Assembly

Standard, Stainless Steel

Specifications Diaphragm Backing Material

Polytetrafluoroethylene (PTFE)

Specifications Diaphragm Facing Material

Metal Backing, Standard

Specifications Diaphragm Type

Liquid Service

Specifications Flow Coefficient Cv

0.06, Standard

Specifications Gauge Port Size

1/4 in

Specifications Gauge Port Types

Female National Pipe Tapered (FNPT)

Specifications Inlet Filter

20 Âµm

Specifications Outlet Range

0 to 100 psig

Specifications Port Configuration

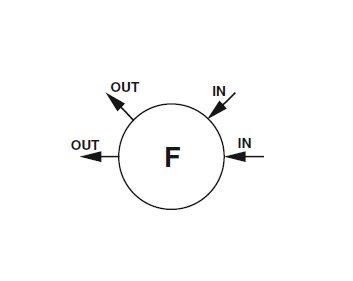

F - See Diagram for Port Configuration

Specifications Process Port Size

3/8 in

Specifications Process Port Types

Female National Pipe Tapered (FNPT)

Specifications Seat Material

Polychlorotrifluoroethylene (PCTFE) (Formerly Kel-FÂ® 81)

Specifications Surface Finish Of Diaphragm Cavity

< 25 Ra | Standard

Specifications Type Of Service

Gas or Liquid

Specifications Weight

1.9 lb | 0.86 kg
