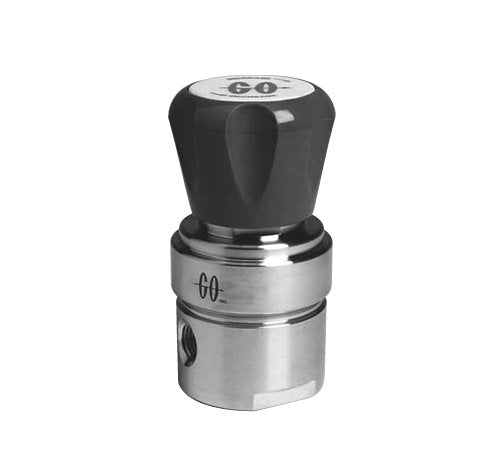

316 Stainless Steel Single Stage Regulator
316 Stainless Steel Single Stage Regulator
SKU:GOP-7cb22a
Reliable 316 Stainless Steel Single Stage Regulator for precise pressure control in gas or liquid services, with adjustable pressure ranges and high-temperature tolerance.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
316 Stainless Steel Single Stage Regulator
$189.99
Quantity: 1
Claim Your Seller Account
316 Stainless Steel Single Stage Regulator
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 316 Stainless Steel Single Stage Regulator is a reliable and versatile pressure reducing regulator designed for instrumentation sample systems and semiconductor processing gases. With stainless steel construction and INCONEL diaphragms, it offers precise pressure control from 0 to 250 psig with inlet pressures up to 6000 psig. Features like bubble-tight shutoff, adjustable outlet pressure ranges, and a wide spectrum of capabilities ensure optimal performance in gas or liquid services. This regulator is built to withstand temperatures ranging from -40°F to +500°F, making it ideal for a variety of industrial applications.
Product Specifications
Features And Specifications Features And Specifications
316L stainless steel, INCONEL®, PTFE, and Tefzel® (or optional main seat material choice) only in flow streamStainless steel cap with SS adjusting screwInlet pressures of up to 6000 psiAdjustable outlet pressure ranges of 0-10, 0-25, 0-50, 0-100, 0-250, 0-500, and 0-750 psigOperating temperatures of -40 °F up to +500 °F (-40 °C up to +260 °C)Bubble-tight shutoff under most conditionsCv flow coefficients 0.025, 0.06, 0.20, and 0.50 (0.06 Standard)
Options Options
Wetted materials of construction: MONEL®, HASTELLOY®, Titanium and 6MOPanel mount (13/8" mounting hole)Special diaphragm assembly for water serviceSS inlet pressure gaugesSS outlet pressure gaugesBase-mounting bracketsCaptured ventSelf-relieving
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
Panel Mount, Stainless Steel
Specifications Diaphragm Backing Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Facing Material
Metal Backing, Standard
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
0.06, Standard
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port, Standard
Specifications Inlet Filter
20 µm
Specifications Outlet Range
0 to 250 psig
Specifications Port Configuration

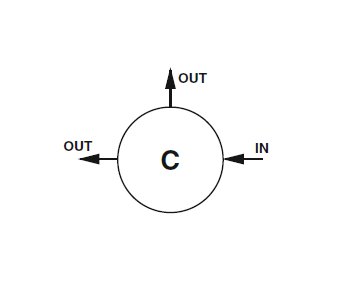

C - See Diagram for Port Configuration
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
Tefzel®
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra | Standard
Specifications Type Of Service
Gas or Liquid
Specifications Weight
1.9 lb | 0.86 kg
