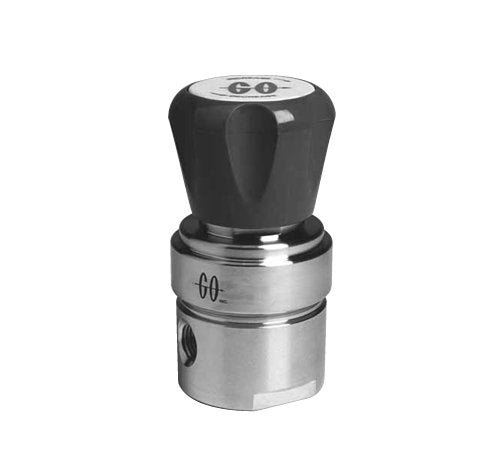

316 Stainless Steel Single Stage Regulator - PR-1
316 Stainless Steel Single Stage Regulator - PR-1
SKU:GOP-f9f1d6
Versatile stainless steel regulator for precise pressure control in instrumentation and semiconductor processing. Adjustable pressure ranges and high-temperature resistance.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
316 Stainless Steel Single Stage Regulator - PR-1
$249.99
Quantity: 1
Claim Your Seller Account
316 Stainless Steel Single Stage Regulator - PR-1
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PR-1 316 Stainless Steel Single Stage Regulator is a versatile pressure reducing regulator designed for instrumentation sample systems and semiconductor processing gases. With stainless steel components, adjustable pressure ranges up to 25 psig, and operating temperatures up to 500°F, this regulator offers precision control for gas or liquid services. Features include INCONEL diaphragms, tamper-proof cap assembly, and bubble-tight shutoff. Ideal for applications requiring high pressure capabilities and temperature resistance.
Product Specifications
Features And Specifications Features And Specifications
316L stainless steel, INCONEL®, PTFE, and Tefzel® (or optional main seat material choice) only in flow streamStainless steel cap with SS adjusting screwInlet pressures of up to 6000 psiAdjustable outlet pressure ranges of 0-10, 0-25, 0-50, 0-100, 0-250, 0-500, and 0-750 psigOperating temperatures of -40 °F up to +500 °F (-40 °C up to +260 °C)Bubble-tight shutoff under most conditionsCv flow coefficients 0.025, 0.06, 0.20, and 0.50 (0.06 Standard)
Options Options
Wetted materials of construction: MONEL®, HASTELLOY®, Titanium and 6MOPanel mount (13/8" mounting hole)Special diaphragm assembly for water serviceSS inlet pressure gaugesSS outlet pressure gaugesBase-mounting bracketsCaptured ventSelf-relieving
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
Tamper-Proof, Stainless Steel
Specifications Diaphragm Backing Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Facing Material
Metal Backing, Standard
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
0.06, Standard
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port, Standard
Specifications Inlet Filter
20 µm
Specifications Outlet Range
0 to 25 psig
Specifications Port Configuration

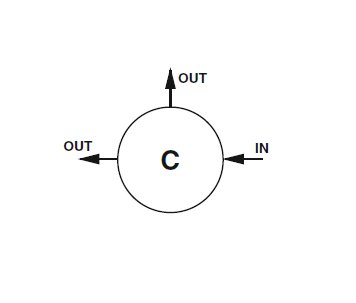

C - See Diagram for Port Configuration
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
Tefzel®
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra | Standard
Specifications Type Of Service
Gas or Liquid
Specifications Weight
1.9 lb | 0.86 kg
