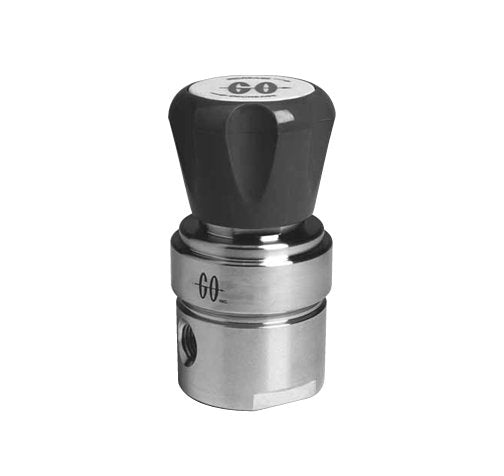

316 Stainless Steel Single Stage Regulator PR-1
316 Stainless Steel Single Stage Regulator PR-1
SKU:GOP-00b0ad
Get precise pressure control with the durable 316 Stainless Steel Single Stage Regulator PR-1. Ideal for gas or liquid service, it ensures reliability at high pressures and temperatures.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
316 Stainless Steel Single Stage Regulator PR-1
$249.99
Quantity: 1
Claim Your Seller Account
316 Stainless Steel Single Stage Regulator PR-1
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 316 Stainless Steel Single Stage Regulator PR-1 is a versatile solution for instrumentation sample systems and semiconductor processing gases. With a range of seat materials, orifice sizes, and pressure control ranges, this regulator offers precise pressure control for gas or liquid service. Features like stainless steel construction, INCONEL® diaphragms, and Tefzel® seat material ensure durability and reliability. Operating at pressures up to 6000 psig and temperatures up to 500°F, this regulator guarantees optimal performance in diverse applications.
Product Specifications
Features And Specifications Features And Specifications
316L stainless steel, INCONEL®, PTFE, and Tefzel® (or optional main seat material choice) only in flow streamStainless steel cap with SS adjusting screwInlet pressures of up to 6000 psiAdjustable outlet pressure ranges of 0-10, 0-25, 0-50, 0-100, 0-250, 0-500, and 0-750 psigOperating temperatures of -40 °F up to +500 °F (-40 °C up to +260 °C)Bubble-tight shutoff under most conditionsCv flow coefficients 0.025, 0.06, 0.20, and 0.50 (0.06 Standard)
Options Options
Wetted materials of construction: MONEL®, HASTELLOY®, Titanium and 6MOPanel mount (13/8" mounting hole)Special diaphragm assembly for water serviceSS inlet pressure gaugesSS outlet pressure gaugesBase-mounting bracketsCaptured ventSelf-relieving
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Diaphragm Backing Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Facing Material
Metal Backing, Standard
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
0.06, Standard
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port, Standard
Specifications Inlet Filter
20 µm
Specifications Outlet Range
0 to 100 psig
Specifications Port Configuration

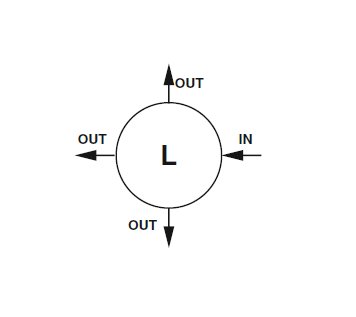

L - See Diagram for Port Configuration
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
Tefzel®
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra | Standard
Specifications Type Of Service
Gas or Liquid
Specifications Weight
1.9 lb | 0.86 kg
