316 Stainless Steel Super Air Nozzle - 1115SS High Force Nozzle
316 Stainless Steel Super Air Nozzle - 1115SS High Force Nozzle
SKU:HIG-ada83a
Durable 316 Stainless Steel Super Air Nozzle - Optimal Efficiency & Compliance
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
316 Stainless Steel Super Air Nozzle - 1115SS High Force Nozzle
$129.99
Quantity: 1
Claim Your Seller Account
316 Stainless Steel Super Air Nozzle - 1115SS High Force Nozzle
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

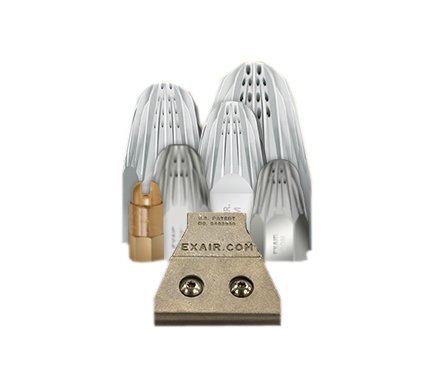

The 1115SS Super Air Nozzle by EXAIR is a high-performance solution suited for industrial applications. Crafted from durable 316 stainless steel, this nozzle is designed to optimize entrained airflow, reducing noise levels while delivering a powerful 6.6 lb force, exceeding standard nozzles by over 8 times. With a pressure rating of 80 psig and air consumption of 135 SCFM, it offers efficient operation while maintaining a low sound level of 99 dBA. Ideal for various tasks including air assist, chip removal, and part cooling, this nozzle not only enhances productivity and safety but also meets OSHA noise and pressure requirements, ensuring compliance and cost-effectiveness.
Product Specifications
Specifications Advantages
10 dBA Average Noise Reduction | Compact | Conserve Compressed Air | Improved Blowoff Performance | Improved Production | Improved Safety | Meets OSHA Noise Level Requirements | Meets OSHA Pressure Requirements | Reduced Compressed Air Cost
Specifications Air Consumption
135 SCFM | 3823 SLPM
Specifications Applications
Air Assist | Chip Removal | Fiber Conveying | Liquid Blowoff | Material Conveying | Part Cleaning | Part Cooling | Part Drying | Part Ejection
Specifications Force
6.6 lb | 3005 g
Specifications Inlet
1 MNPT
Specifications Material
316 Stainless Steel
Specifications Note
Force measured at 12" (305 mm) from target
Specifications Pressure
80 psig | 5.5 bar
Specifications Sound Level
99 dBA
