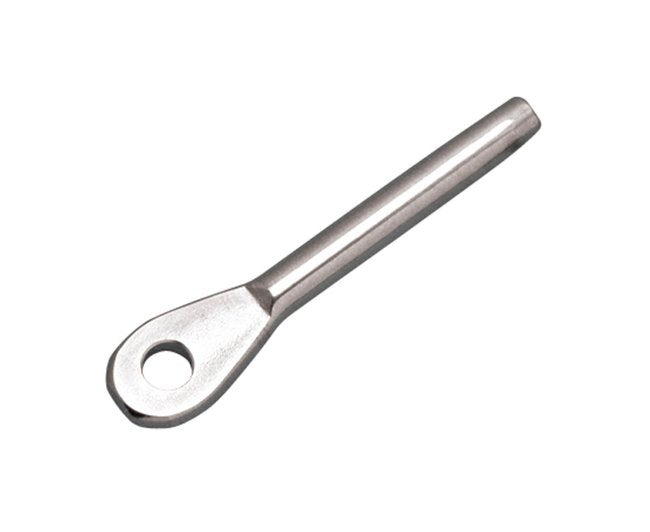

316 Stainless Steel Swage Eye Terminal for Marine and Industrial Applications
316 Stainless Steel Swage Eye Terminal for Marine and Industrial Applications
SKU:STA-d52489
Durable 316 Stainless Steel Swage Eye for marine and industrial use. Superior corrosion resistance and precision machined for reliability.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

The 316 Stainless Steel Swage Eye Terminal is a versatile solution designed to accommodate wire sizes ranging from 1/16" to 1/2". Crafted from grade 316 stainless steel, this Swage Eye offers superior corrosion resistance and durability, making it ideal for marine and industrial applications. Precision machined for reliability, this Swage Eye ensures a secure fit for projects of any scale, providing peace of mind in challenging environments.
Product Specifications
Specifications After Swage
0.25 in
Specifications Before Swage
0.30 in

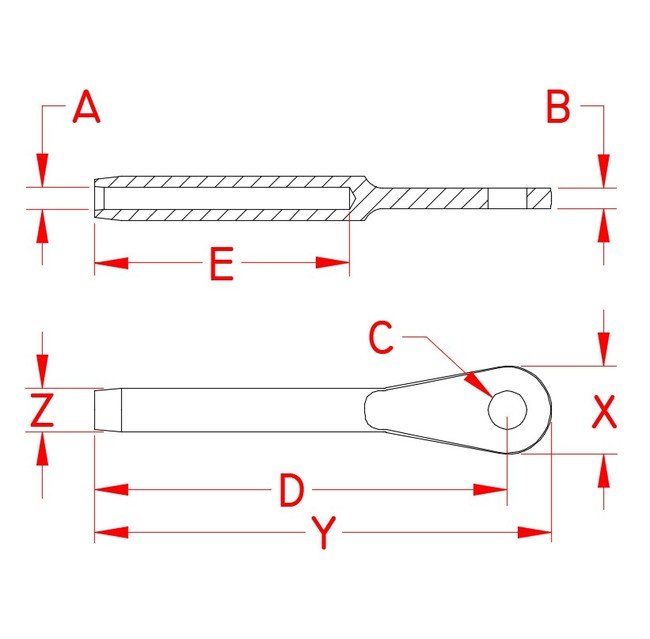

Specifications Dimension A
5/32 in
Specifications Dimension B
0.19 in
Specifications Dimension C
0.25 in
Specifications Dimension D
2.68 in
Specifications Dimension E
1.76 in
Specifications Dimension X
0.70 in
Specifications Dimension Y
3.02 in
Specifications Dimension Z
0.30 in
Specifications Fabrication Type
Precision Machined
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.05 lb
CAGE
1CXX6
NAICS
332618
PSC
4030
