316 Stainless Steel Swage Marine Toggle for Marine Rigging and Lifeline Applications

316 Stainless Steel Swage Marine Toggle for Marine Rigging and Lifeline Applications

SKU:STA-1b3d71

Durable 316 Stainless Steel Swage Marine Toggle for versatile marine rigging, precision-engineered for reliability.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

316 Stainless Steel Swage Marine Toggle for Marine Rigging and Lifeline Applications

316 Stainless Steel Swage Marine Toggle for Marine Rigging and Lifeline Applications

$29.99

Quantity: 1

Claim Your Seller Account

316 Stainless Steel Swage Marine Toggle for Marine Rigging and Lifeline Applications

316 Stainless Steel Swage Marine Toggle for Marine Rigging and Lifeline Applications

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

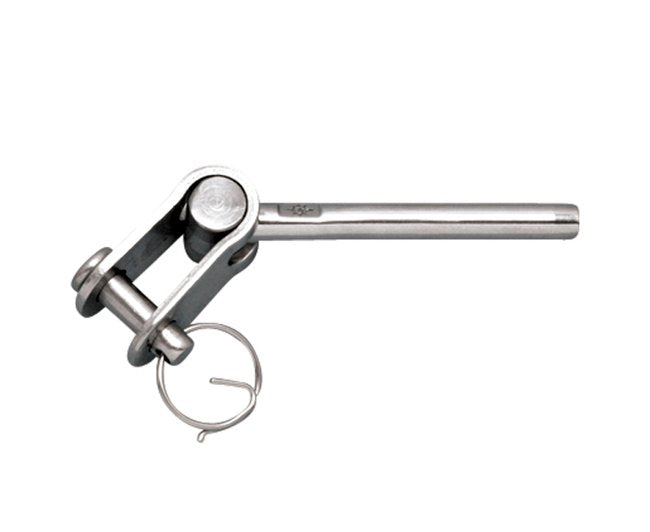

The 316 Stainless Steel Swage Marine Toggle is a durable and corrosion-resistant solution for marine rigging and lifeline applications. Precision machined from grade 316 stainless steel, it offers maximum durability and longevity. This toggle can accommodate wire sizes ranging from 1/8" to 3/8", making it versatile for various projects. Its dimensional specifications, including before and after swaging dimensions, ensure a secure and reliable connection. Manufactured by Suncor, this toggle is ideal for both small and large-scale marine projects.

Product Specifications

Specifications After Swage
0.25 in
Specifications Before Swage
0.30 in

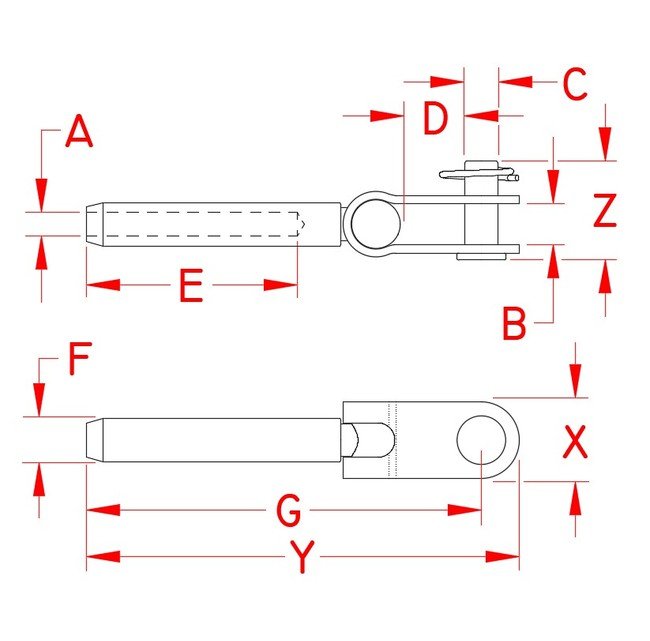

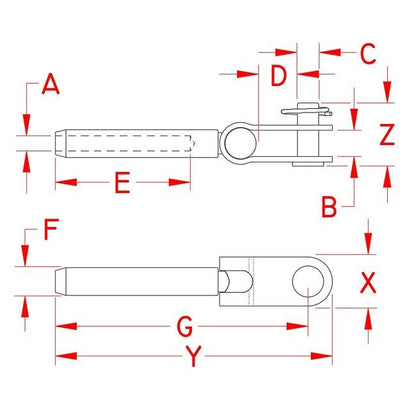

Specifications Dimension A
5/32 in
Specifications Dimension B
0.38 in
Specifications Dimension C
0.24 in
Specifications Dimension D
0.45 in
Specifications Dimension E
1.81 in
Specifications Dimension G
3.11 in
Specifications Dimension X
0.59 in
Specifications Dimension Y
3.37 in
Specifications Dimension Z
0.82 in
Specifications Fabrication Type
Precision Machined
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.08 lb
CAGE
1CXX6
NAICS
332618
PSC
4030
