316 Stainless Steel Swivel for Lifting & Rigging
316 Stainless Steel Swivel for Lifting & Rigging
SKU:STA-1a0a91
Durable 316 Stainless Steel Swivel for twist-free lifting operations. Supports up to 5,140 lbs.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
316 Stainless Steel Swivel for Lifting & Rigging
$49.99
Quantity: 1
Claim Your Seller Account
316 Stainless Steel Swivel for Lifting & Rigging
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 316 Stainless Steel Swivel for Lifting & Rigging is a premium solution for applications requiring smooth, twist-free performance. Made from grade 316 stainless steel to resist corrosion, this swivel supports loads of up to 5,140 lbs. Its extra-large eye opening accommodates oversized chains, and it serves as a reliable stress-relieving positioning device. Manufactured in compliance with Federal Specification RR-C-271F Type VII, Class 1, except 316 stainless steel, ensuring top-notch quality for lifting and rigging operations.

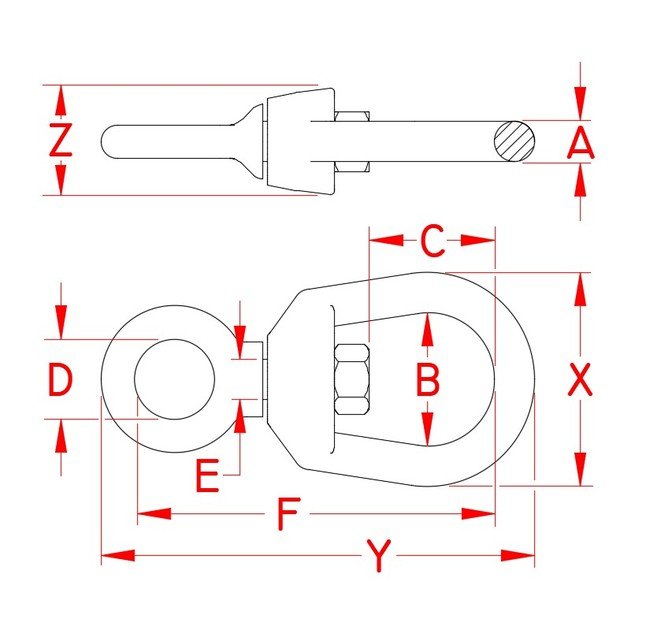

Product Specifications
Specifications Dimension A
3/16 in
Specifications Dimension B
0.75 in
Specifications Dimension C
0.84 in
Specifications Dimension D
0.50 in
Specifications Dimension E
0.25 in
Specifications Dimension F
2.28 in
Specifications Dimension X
1.25 in
Specifications Dimension Y
2.65 in
Specifications Dimension Z
0.60 in
Specifications Fabrication Type
Drop Forged
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
Class 1 | Fed. Spec. RR-C-271F | MIL-DTL-32655 | Type VII
Specifications Suncor Exclusive
Yes
Specifications Weight
0.11 lb
Specifications Working Load Limit Wll
700 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
