316 Stainless Steel Threaded Yoke End - Suncor

316 Stainless Steel Threaded Yoke End - Suncor

SKU:STA-d395c0

Get superior corrosion resistance with our 316 Stainless Steel Yoke End - ideal for marine & industrial applications.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

316 Stainless Steel Threaded Yoke End - Suncor

316 Stainless Steel Threaded Yoke End - Suncor

$24.99

Quantity: 1

Claim Your Seller Account

316 Stainless Steel Threaded Yoke End - Suncor

316 Stainless Steel Threaded Yoke End - Suncor

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

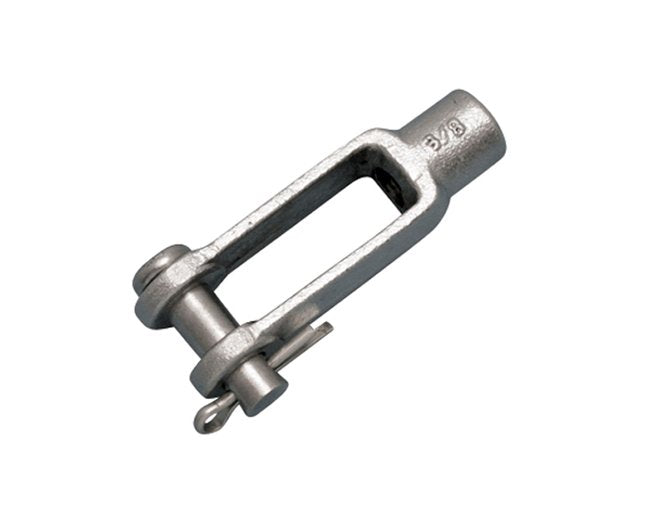

The 316 Stainless Steel Threaded Yoke End by Suncor is crafted for precision and durability. With UNC threads and a size range from 3/16" to 3/4", this yoke end is ideal for marine and industrial turnbuckle applications. Made from grade 316-NM stainless steel, it offers maximum corrosion resistance. The yoke end is drop forged and precision machined, ensuring reliability in load-bearing scenarios. Suncor's exclusive design guarantees a Working Load Limit (WLL) of 800 lb, making it a trusted choice for critical operations.

Product Specifications

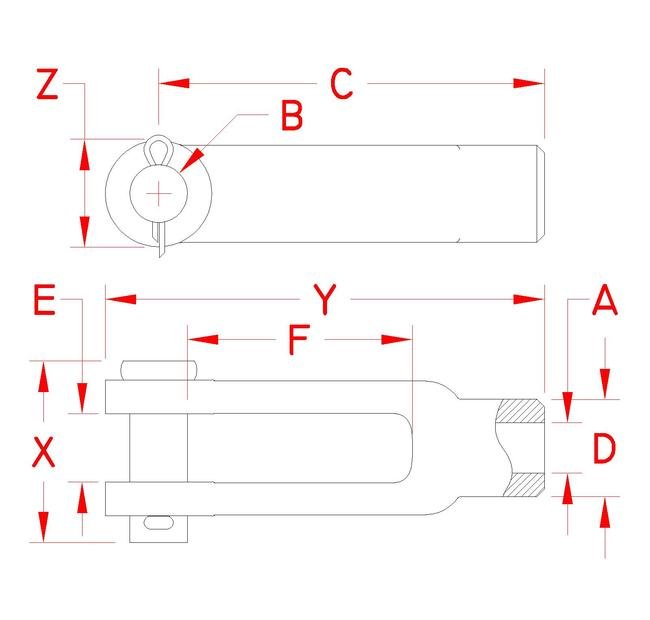

Specifications Dimension A
5/16 in
Specifications Dimension B
0.31 in
Specifications Dimension C
2.25 in
Specifications Dimension D
0.50 in
Specifications Dimension E
0.33 in
Specifications Dimension F
1.26 in
Specifications Dimension X
1.11 in
Specifications Dimension Y
2.57 in
Specifications Dimension Z
0.64 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Weight
0.14 lb
Specifications Working Load Limit Wll
800 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
