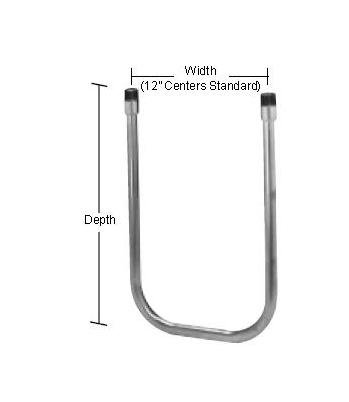

The UC Series U Coils are expertly crafted from durable 316 stainless steel, offering superior chemical resistance for heating or cooling alkaline or acid solutions. Featuring a rugged construction with heavy-wall metal tubing, these coils ensure outstanding performance with a one-inch thick, low-profile design. They provide leak-free operation with single-point connections and have a high-pressure rating of 100 PSI. Additionally, various customization options are available for specific needs, making them ideal for small tanks with low heat exchange requirements.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: Wide variety of materials available for use in heating or cooling applications for alkaline or acid solutions and rinse tanks. Check solution guide or consult with your chemical supplier for proper sheath material.RUGGED CONSTRUCTION:Heavy wall, 18-gauge metal tubing available in steel, 316 stainless steel, and titanium.1â diameter tubing.1â MNPT fittings standard.OUTSTANDING PERFORMANCE: One-inch thick, low profile design. Every inch of coil surface is active exchange area. Ideal for small tanks with low heat exchange requirements.LEAK-FREE OPERATION: Single point connections reduce the potential for leaks and simplifies installation. One-inch MNPT connections standard.HIGH PRESSURE RATING: 100 PSI working pressure (steam or water).SIZES: .75 square ft. to 2.5 square ft. of exchange area standard.OPTIONS AVAILABLE (consult factory):Special configurations and lengths.Heavier gauge tubing.Zirconium, Hastelloy C® and other alloys available.Fluoropolymer coatings for corrosion protection at solution/atmospheric interface.Non-conductive isolator couplings.L-shaped configurations for bottom heat applications.Higher pressure ratings available.Hastelloy C® is a registered trademark of Haynes International, Inc.
Specifications Available Tubing
1/2 " | 5/8 " | 3/4 " | 1 " | 1-1/4 "
Specifications Depth
48 " | 1219 mm
Specifications Exchange Area
2.00 ft²
Specifications Manufacturer
Process Technology
Specifications Material
316 Stainless Steel
Specifications Shipping Weight
8.0 Pound
Specifications Weight
8.0 lbs | 3.6 kg

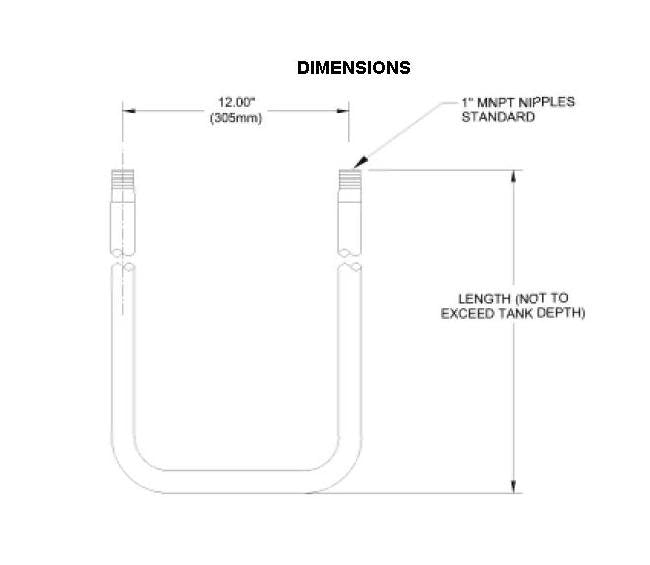

Specifications Width
12 " | 305 mm
