316 Stainless Steel U Coils - UC Series
316 Stainless Steel U Coils - UC Series
SKU:HEA-1b675c
High-performance 316 Stainless Steel U Coils for efficient heat exchange in small tanks. Superior resistance and leak-free operation.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
316 Stainless Steel U Coils - UC Series
$299.99
Quantity: 1
Claim Your Seller Account
316 Stainless Steel U Coils - UC Series
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UC Series U Coils offer superior chemical resistance, rugged construction with heavy-wall metal tubing, outstanding performance with a low profile design for efficient heat exchange, leak-free operation with single point connections, and a high-pressure rating of 100 PSI. Available in various sizes and with options like special configurations, different alloys, and coatings, these coils are ideal for heating or cooling alkaline or acid solutions in small tanks. Compliance with Federal/DoD procurement standards, GSA requirements, FAR compliance factors, and industry-specific certifications ensures quality assurance for institutional buyers.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: Wide variety of materials available for use in heating or cooling applications for alkaline or acid solutions and rinse tanks. Check solution guide or consult with your chemical supplier for proper sheath material.RUGGED CONSTRUCTION:Heavy wall, 18-gauge metal tubing available in steel, 316 stainless steel, and titanium.1â diameter tubing.1â MNPT fittings standard.OUTSTANDING PERFORMANCE: One-inch thick, low profile design. Every inch of coil surface is active exchange area. Ideal for small tanks with low heat exchange requirements.LEAK-FREE OPERATION: Single point connections reduce the potential for leaks and simplifies installation. One-inch MNPT connections standard.HIGH PRESSURE RATING: 100 PSI working pressure (steam or water).SIZES: .75 square ft. to 2.5 square ft. of exchange area standard.OPTIONS AVAILABLE (consult factory):Special configurations and lengths.Heavier gauge tubing.Zirconium, Hastelloy C® and other alloys available.Fluoropolymer coatings for corrosion protection at solution/atmospheric interface.Non-conductive isolator couplings.L-shaped configurations for bottom heat applications.Higher pressure ratings available.Hastelloy C® is a registered trademark of Haynes International, Inc.
Specifications Available Tubing
1/2 " | 5/8 " | 3/4 " | 1 " | 1-1/4 "

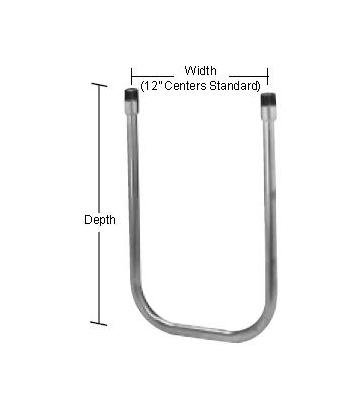

Specifications Depth
30 " | 762 mm
Specifications Exchange Area
1.25 ft²
Specifications Manufacturer
Process Technology
Specifications Material
316 Stainless Steel
Specifications Shipping Weight
5.0 Pound
Specifications Weight
5.0 lbs | 2.3 kg

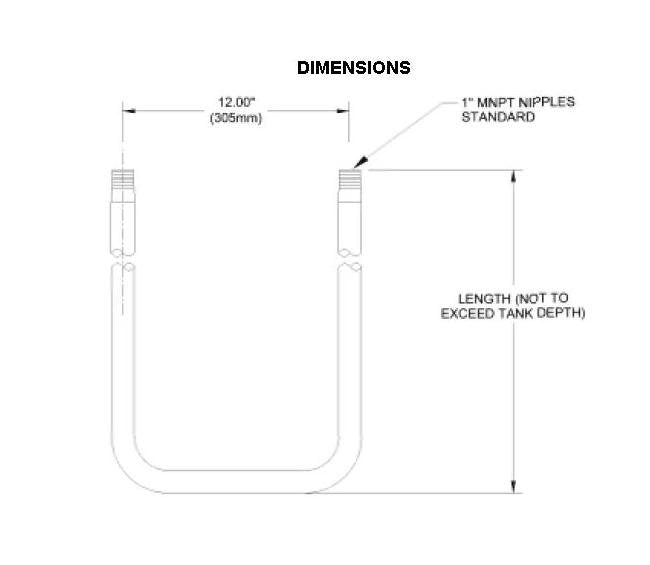

Specifications Width
12 " | 305 mm
